Adjusting Soft Core Diameter

The gate must be closed and the tension arm all the way down before making soft core diameter adjustment.

Adjust as follows:

Loosen wing nut (A).

    Turn cam (B) until desired mark is leveled with switch roller (C). Adjusting ranges are:

  • From "1" to "4.5" on 572 baler.
  • From "1" to "5" on 582 baler.

Tighten wing nut (A) and check that cam (B) is still aligned with switch roller (C).

IMPORTANT: Diameter of soft core should never be greater than bale size selected.

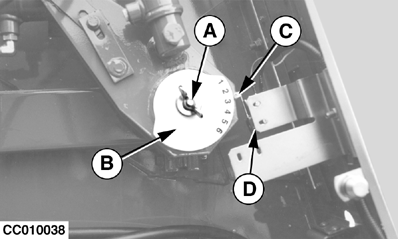

CC010038


A-Wing nut
B-Cam
C-Switch roller
D-Switch
