Adjusting Bale Size Switch (Baler with ELS Monitor)

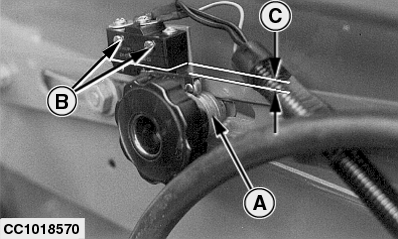

Raise the gate until switch arm is centered over washers (A).

Loosen screws (B) and adjust switch to obtain a 3 mm (0.118 in.) gap (C) between switch arm and body. Tighten screws (B).

NOTE: With the switch in this position, the ELS Monitor Switch buzzer should be heard. If not, repeat procedure and decrease gap (C).
