Preparing the Tractor for Control Monitor Installation

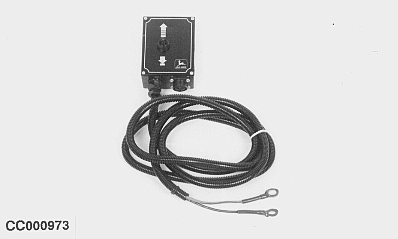

The round baler control monitors are designed for use on 12 Volt electrical systems with negative ground. All control monitors are reverse voltage protected.

OUCC006,000098D -19-12JUN03-1/3

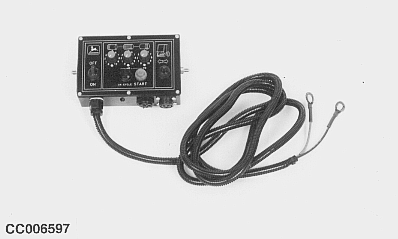

The power supply must be 12 Volt, 30 A fully charged battery. A minimum of 20 A is required during electrical cylinder retract cycle.

IMPORTANT: Over voltage should not be higher than 19 V.

Under voltage should not be below 9 V for ELC as under this value circuit breaker will trip. This can occur when battery is flat or if battery connections are not good. Always check battery voltage and connections by actuating the actuators before operating the baler.

NOTE: Due to the high level of ripple current (over voltage), do not perform any ELC monitor test with the battery connected to a battery charger.

OUCC006,000098D -19-12JUN03-2/3

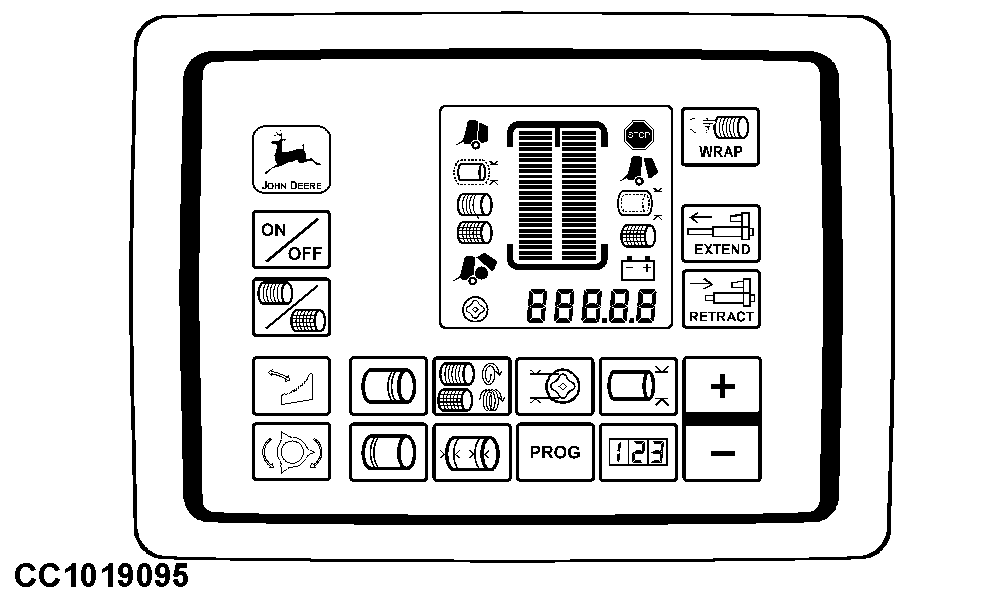

The power supply must be 12 Volt, with fully charged battery. A minimum of 20 A is required during electrical cylinder retract cycle. Make sure connection is made through the convenience outlet furnished with the monitor (see "Connecting BaleTrak Control Monitor To Tractor" in this Section).

IMPORTANT: Over voltage should not be higher than 16 V.

Under voltage should not be below 11.2 V as under this value the BaleTrak control will not work correctly and an diagnostic trouble code will be displayed. This can occur when battery is flat or if battery connections are not good. Always check battery voltage and connections by actuating the actuators before operating the baler.

NOTE: Due to the high level of ripple current (over voltage), do not perform any BaleTrak test with the battery connected to a battery charger.

OUCC006,000098D -19-12JUN03-3/3
