Manual Start of Tying Cycle

IMPORTANT: The "Channel 032: Manual Start of Tying Cycle" must be activated to start a tying cycle manually. See "Channel 032: Manual Start of Tying Cycle" in "BaleTrak Monitor Service" Section.

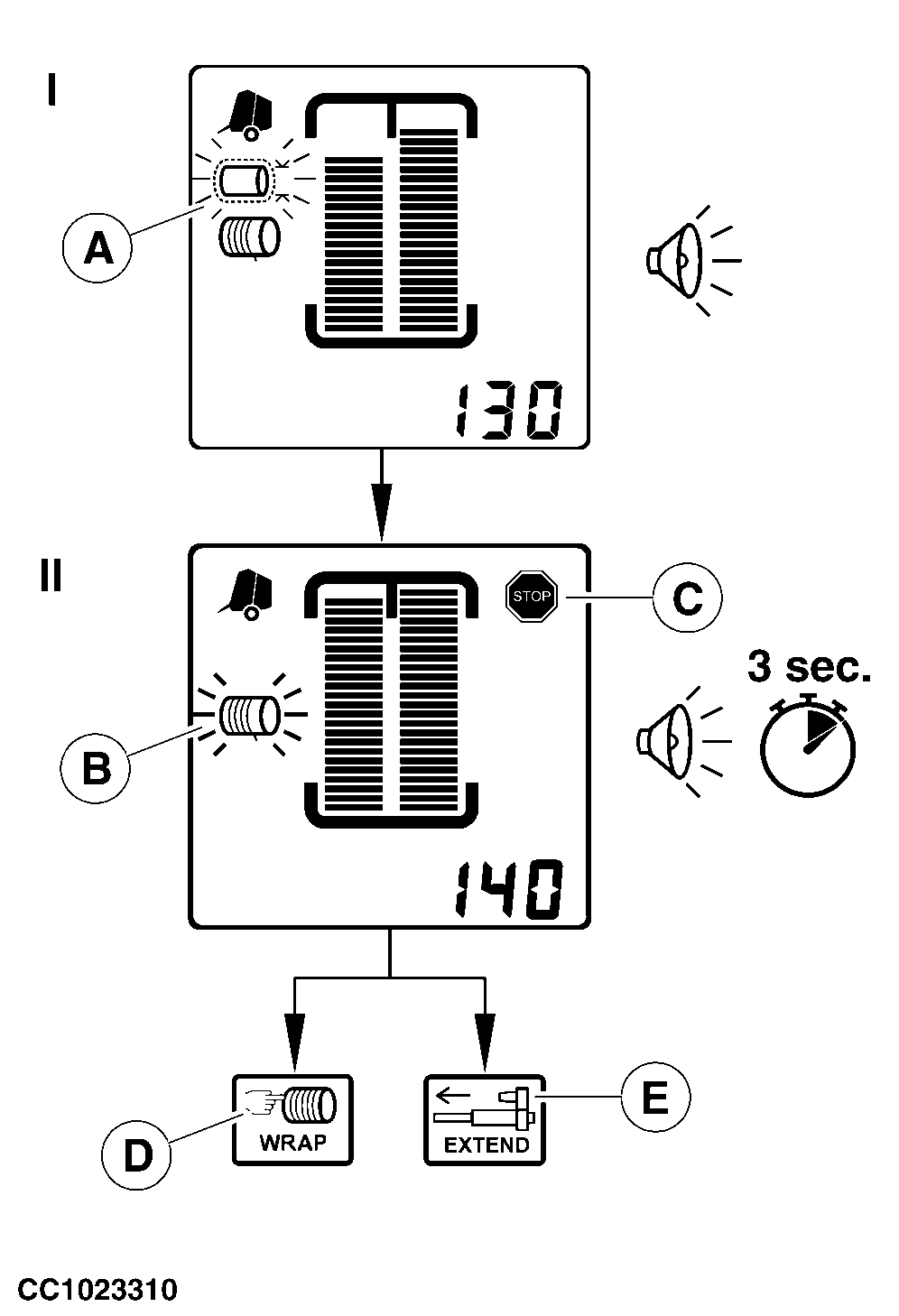

I - Just before the set bale diameter is reached, the nearly full pictogram (A) flashes and the monitor beeps two times. The nearly full diameter at which the pictogram flashes is adjustable, see "Channel 010: Offset of Nearly Full Alarm" in this section.

II - When the adjusted bale diameter is reached, the monitor beeps continuously for 3 seconds and the stop indicator (C) is displayed. Immediately stop the tractor.

III - Manually start an automatic tying cycle (D) or tie bale manually (E). See "Manual Start of an Automatic Tying Cycle" and "Tying a Bale Manually" in this Section.

A-Nearly full pictogram
B-Twine pictogram
C-Stop indicator

OUCC006,00009BE -19-23JUL03-1/1
