ELS Monitor

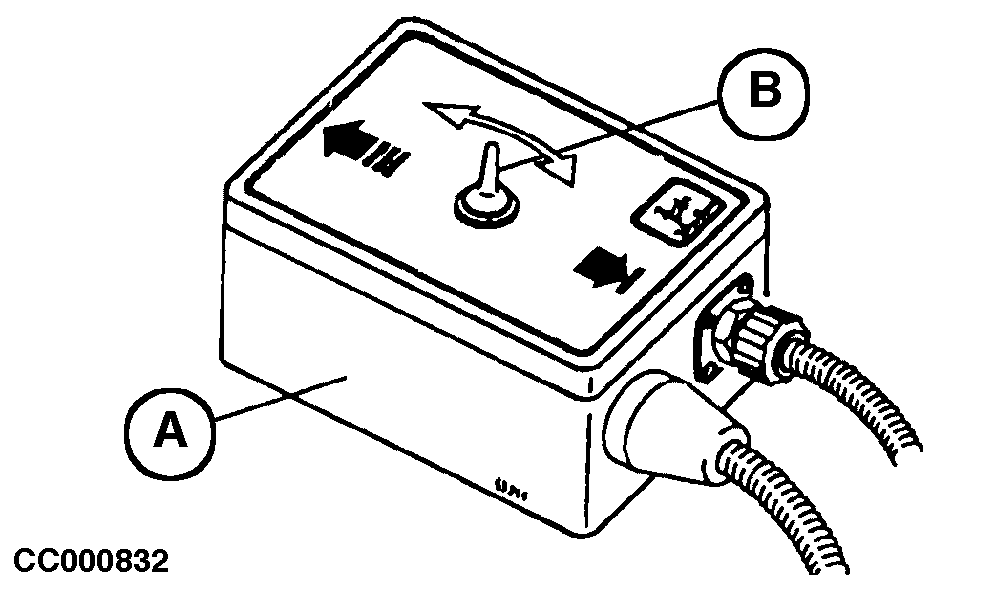

The ELS monitor (A) allows the operator to manually control the twine tying cycle by using the switch (B) to distribute the twine across the bale.

The ELS monitor includes two sound alarms:

When the desired bale diameter is achieved, this sound alarm informs the operator that he should stop the tractor forward travel and start to tie the bale.

When bale has reached the maximum permissible diameter (danger of oversize), check and determine cause of problem. At that time, operator should stop the tractor forward travel and start to tie the bale.

Once connected to the baler wiring harness, the ELS monitor (A) is ready to operate.

NOTE: The ELS monitor includes an electronic limit switch to protect twine arm actuator from any improper use.

The sound level of the buzzer is adjustable.

A-ELS monitor
B-Switch
