Routing Belts Through the Baler (582 - 592 Balers without Cleaning Auger and without Precutter)

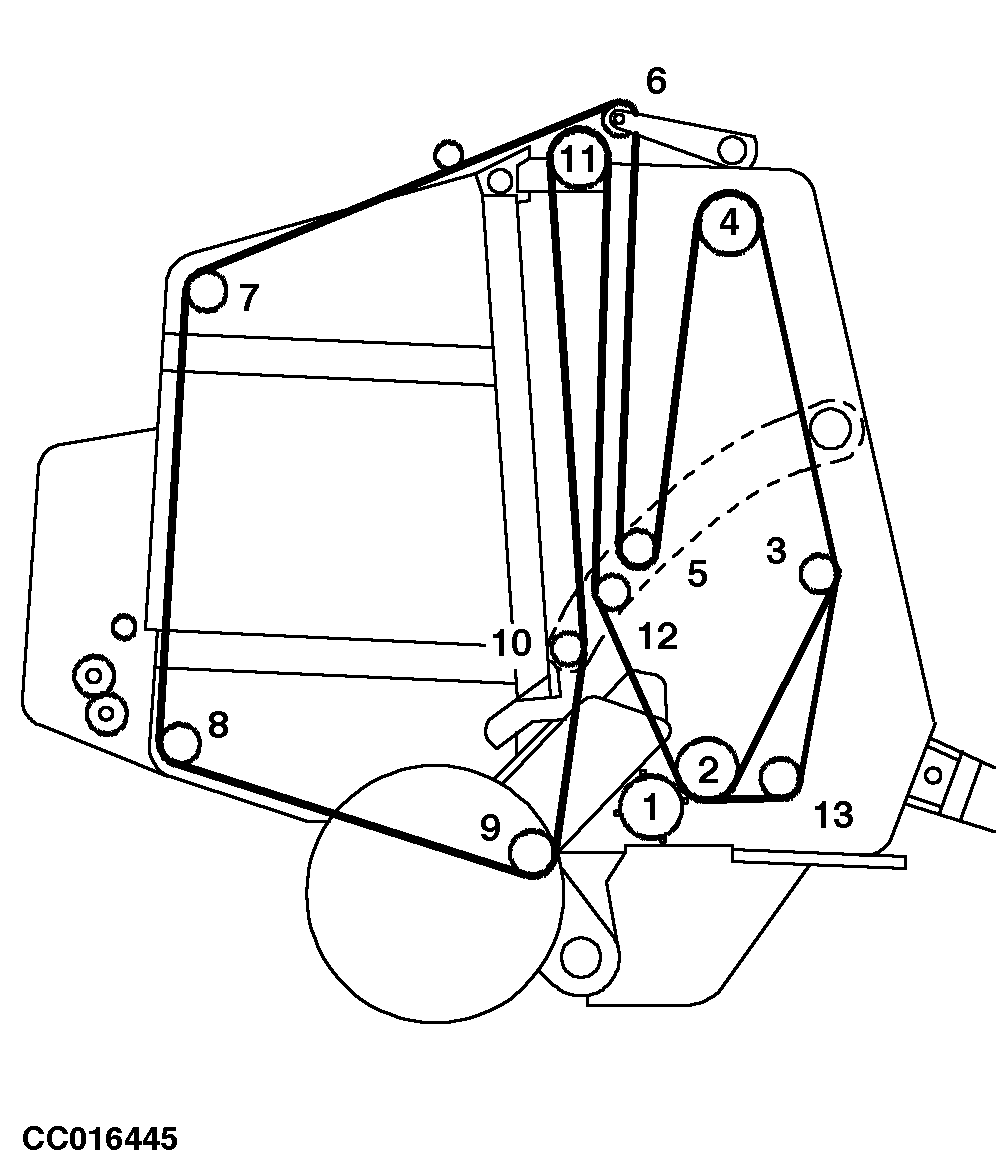

Route belts as shown in illustration, passing them through the individual guides. See illustrations for location of long and short belts.
On 582 Baler
-
Length (A) of short belts = 11.71 m ± 0.012 m (38 ft 5 in. ± 0.47 in.).
-
Length (B) of long belts = 11.85 m ± 0.012 m (38 ft 10.5 in. ± 0.47 in.).
On 592 Baler
-
Length (A) of short belts = 13.335 m ± 0.012 m (43 ft 9 in. ± 0.47 in.).
-
Length (B) of long belts = 13.475 m ± 0.012 m (44 ft 2.5 in. ± 0.47 in.).
|
582-592 Balers without Cleaning Auger
582-592 Balers without Precutter
|
