Routing Belts Through the Baler (582 - 592 Balers without Cleaning Auger and with Precutter)

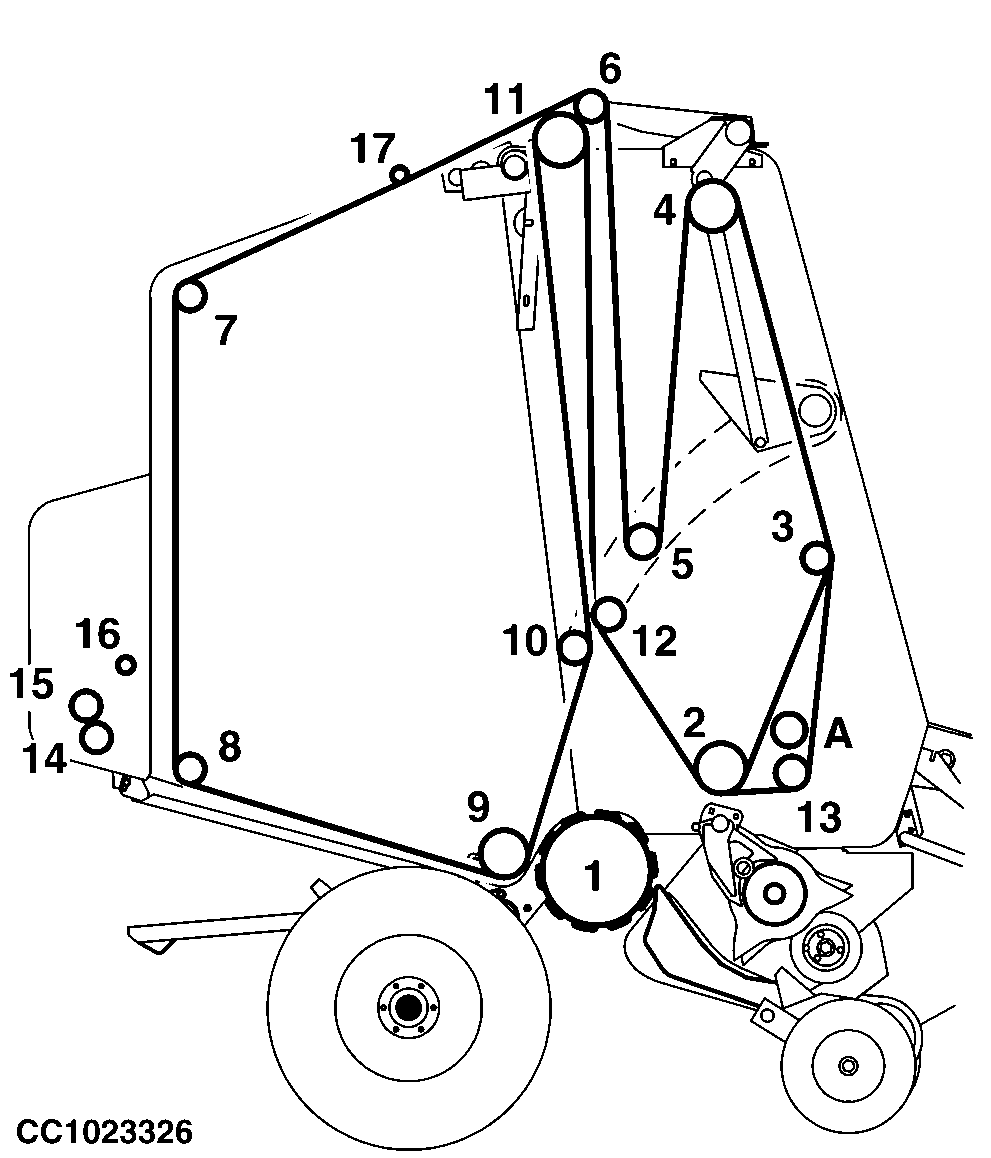

Route belts as shown in illustration, passing them through the individual guides. See illustrations for location of long and short belts.

On 582 Baler (with 330 mm (1 ft 1 in.) Roll NR 1)

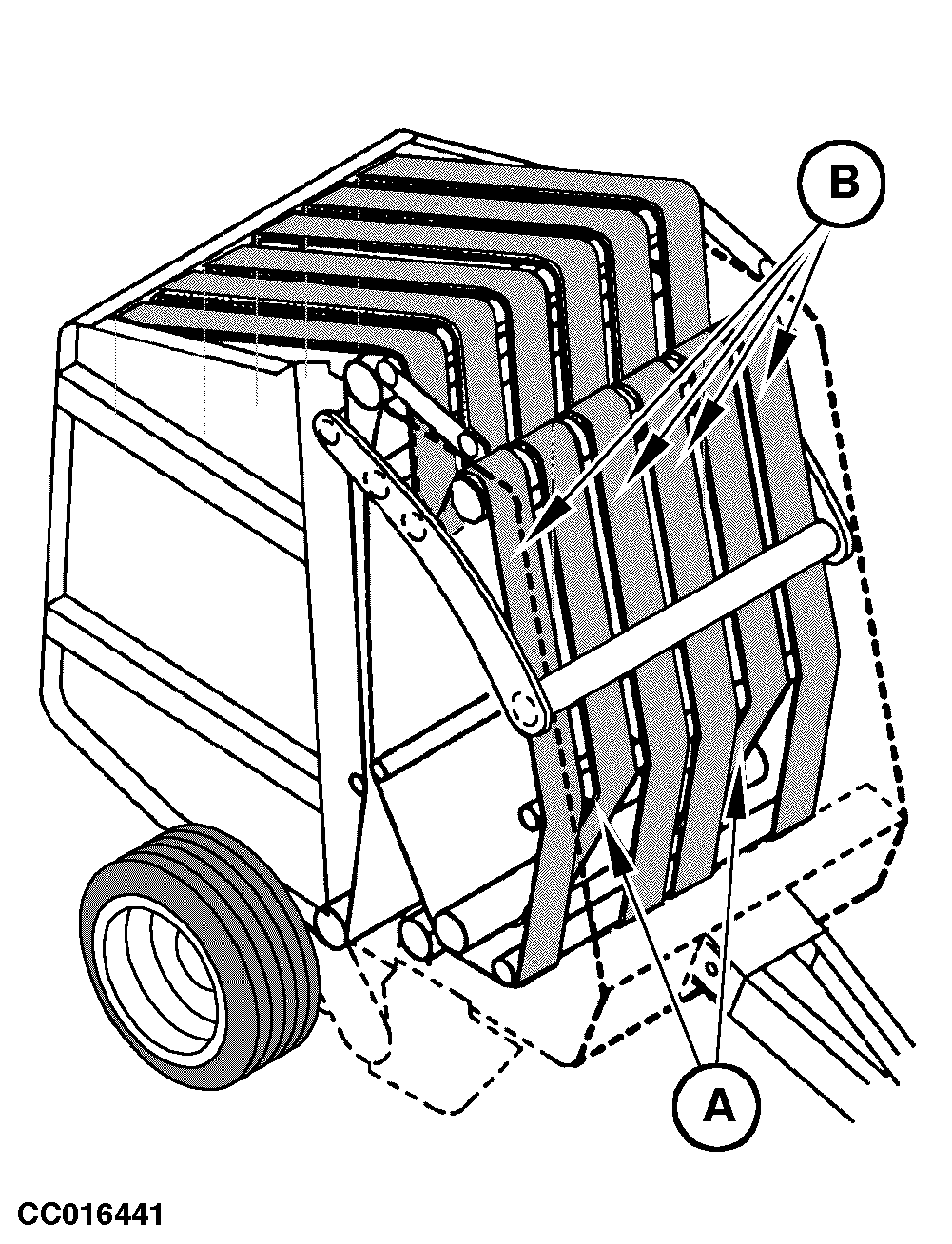

• Length (A) of short belts = 11.445 m ± 0.012 m (37 ft 6.6 in. ± 0.47 in.).
• Length (B) of long belts = 11.585 m ± 0.012 m (38 ft 1 in. ± 0.47 in.).

On 582 Baler (without 330 mm (1 ft 1 in.) Roll NR 1)

• Length (A) of short belts = 11.71 m ± 0.012 m (38 ft 5 in. ± 0.47 in.).
• Length (B) of long belts = 11.85 m ± 0.012 m (38 ft 10.5 in. ± 0.47 in.).

On 592 Baler (with 330 mm (1 ft 1 in.) Roll NR 1)

• Length (A) of short belts = 13.07 m ± 0.012 m (42 ft 9.6 in. ± 0.47 in.).
• Length (B) of long belts = 13.21 m ± 0.012 m (43 ft 4.1 in. ± 0.47 in.).

On 592 Baler (without 330 mm (1 ft 1 in.) Roll NR 1)

• Length (A) of short belts = 13.335 m ± 0.012 m (43 ft 9 in. ± 0.47 in.).
• Length (B) of long belts = 13.475 m ± 0.012 m (44 ft 2.5 in. ± 0.47 in.).

OUCC006,00009CC -19-29JUL03-1/1
