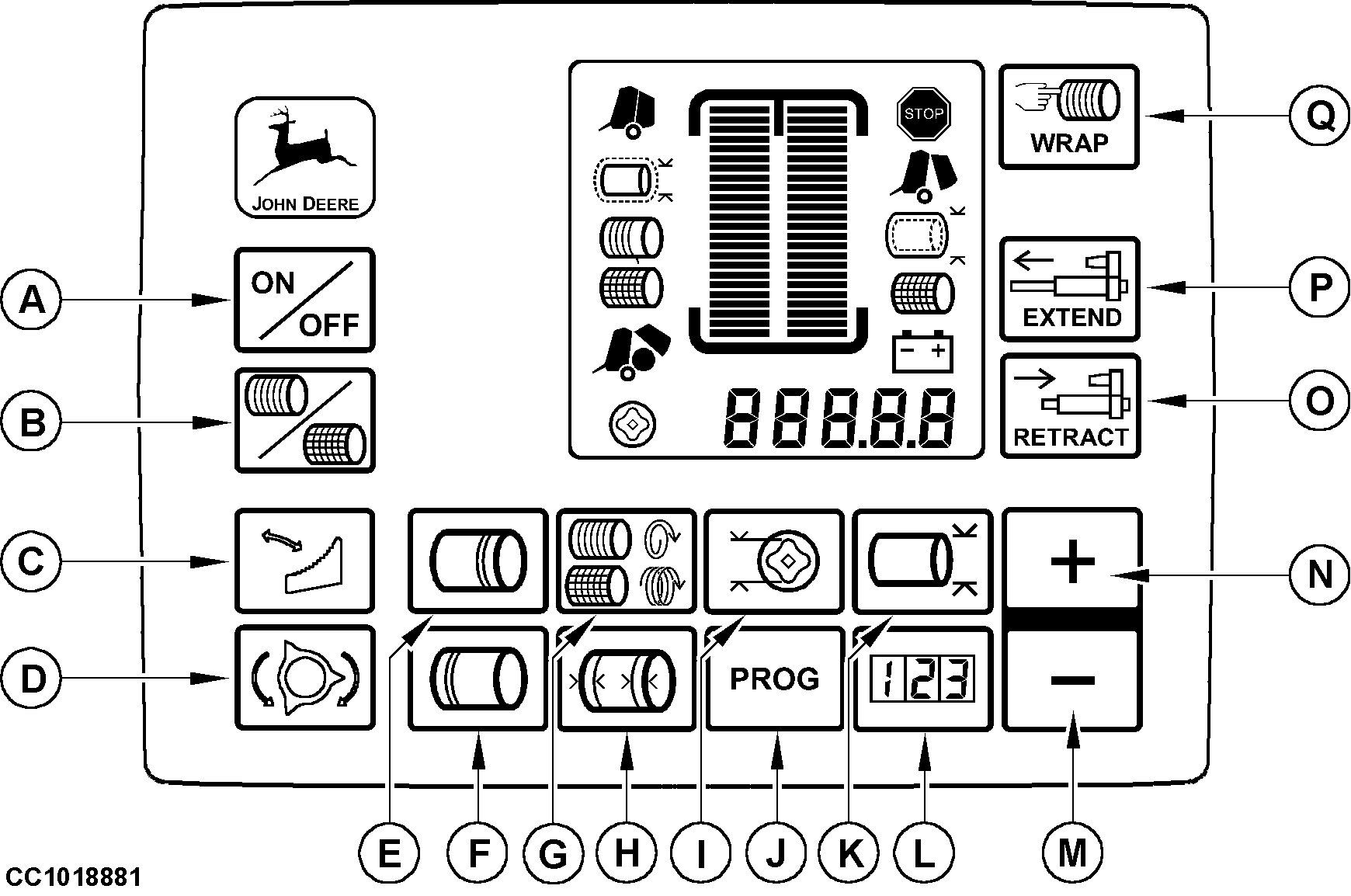

A-ON/OFF key
B-Twine or net tying key
C-Precutter knife key
D-Precutter reverse key
E-Tying start key (Twine only)

F-Tying end key (Twine only)
G-Twine spacing/Number of net turns
H-Tying end distance (Twine only)
I-Soft core key

J-Program key
K-Tying auto start bale diameter
L-Bale counters
M-Minus key

N-Plus key
O-Retract key
P-Extend key
Q-Manually start an automatic tying cycle

NOTE: When any key is pressed, buzzer will beep.

A short pressure on "PLUS" or "MINUS" keys gives an increment of selected value.

A long pressure on "PLUS" or "MINUS" keys accelerates the increment display.
