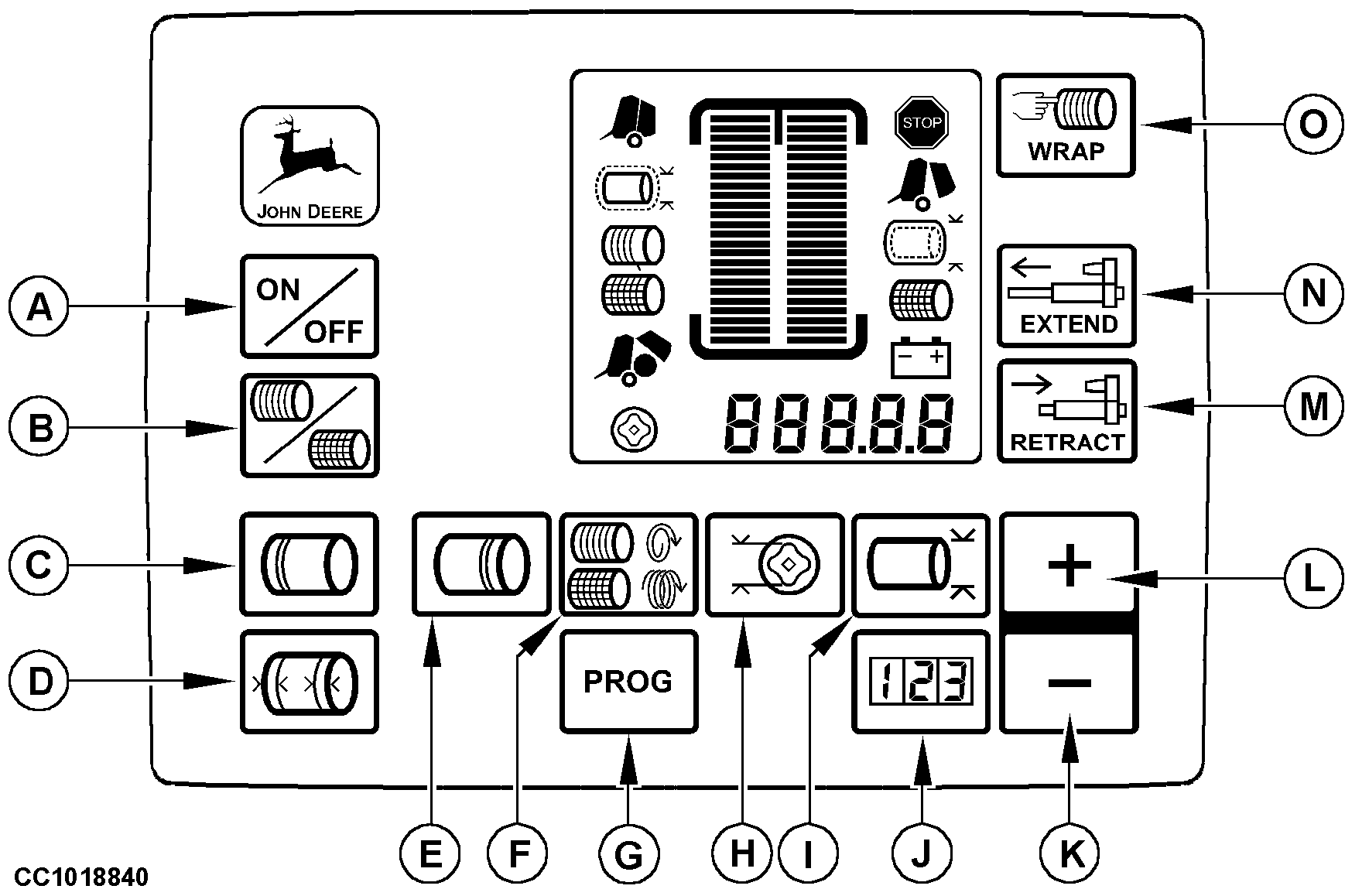

A-ON/OFF key
B-Twine or net tying key
C-Tying end key (Twine only)
D-End tying distance (Twine only)

E-Tying start key (Twine only)
F-Twine spacing/Number of net turns
G-Program key

H-Soft core key
I-Tying auto start bale diameter
J-Bale counters
K-Minus key

L-Plus key
M-Retract key
N-Extend key
O-Manually start an automatic tying cycle

NOTE: When any key is pressed, buzzer will beep.

A short pressure on "PLUS" or "MINUS" keys gives an increment of selected value.

A long pressure on "PLUS" or "MINUS" keys accelerates the increment display.

OUCC006,00009CF -19-30JUL03-1/1
