Adjusting Bale Size (from S.N. 50000)

The gate must be closed and the tension arm fully down before making bale size adjustment.

Adjust as follows:

1. Loosen strap (A).

2. Turn bale size cam (B) until desired mark is level with switch roller (C).

Adjusting ranges are:

  • From "1" to "4.5" on 572 baler.
  • From "1" to "5" on 582 baler.
  • From "1" to "6" on 592 baler.

3. Tighten strap (A) and check that bale size cam (B) is still aligned with switch roller (C).

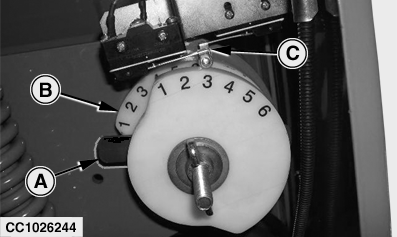

CC1026244


A-Strap
B-Bale Size Cam
C-Switch roller

OUCC006,0000C35 -19-15OCT04-1/1
