Adjusting Bale Size Switch (Baler with ELC Monitor)

1. Close the gate.

2. Loosen switch mounting screws (A).

3. Position switch roller (B) on highest (numbered) portion of cam (C).

4. Adjust switch to approximately 1 mm (0.04 in.) clearance (D) between switch body and switch arm.

5. Tighten screws (A).

NOTE: On baler equipped with soft core option, the second cam (E) is the soft core diameter cam.


A-Screws
B-Switch roller
C-Bale size cam
D-1 mm (0.04 in.)
E-Soft core cam

CC001272

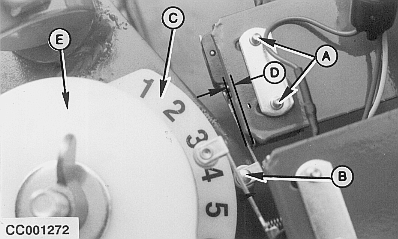

Adjusting Bale Size Switch (up to S.N. 48999)

CC1026245

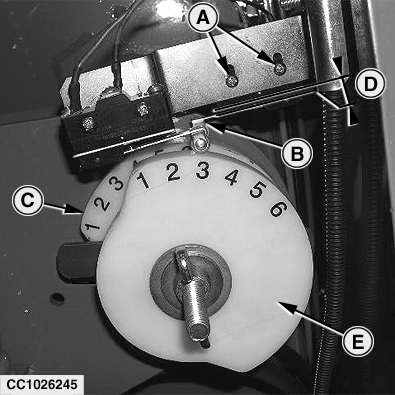

Adjusting Bale Size Switch (from S.N. 50000)

OUCC006,0000C37 -19-15NOV04-1/1
