Adjusting Soft Core Switch

1. Close the gate.

2. Loosen switch mounting screws (A).

3. Position switch roller (B) on highest (numbered) portion of cam (C).

4. Adjust switch to approximately 1 mm (0.04 in.) clearance (D) between switch body and switch arm.

5. Tighten screws (A).

NOTE: On baler equipped with ELC Monitor, the second cam (E) is the bale size cam.


A-Screw
B-Roller
C-Soft core cam
D-1 mm (0.04 in.)
E-Bale size cam

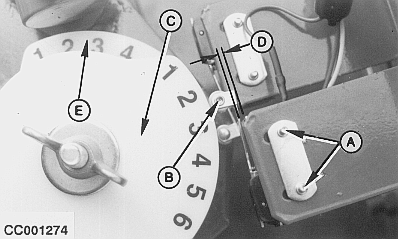

CC001274

Adjusting Soft Core Switch (up to S.N. 48999)

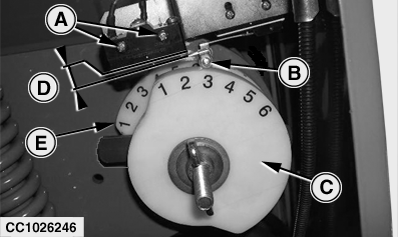

CC1026246

Adjusting Soft Core Switch (from S.N. 50000)

OUCC006,0000C38 -19-15NOV04-1/1
