Annually

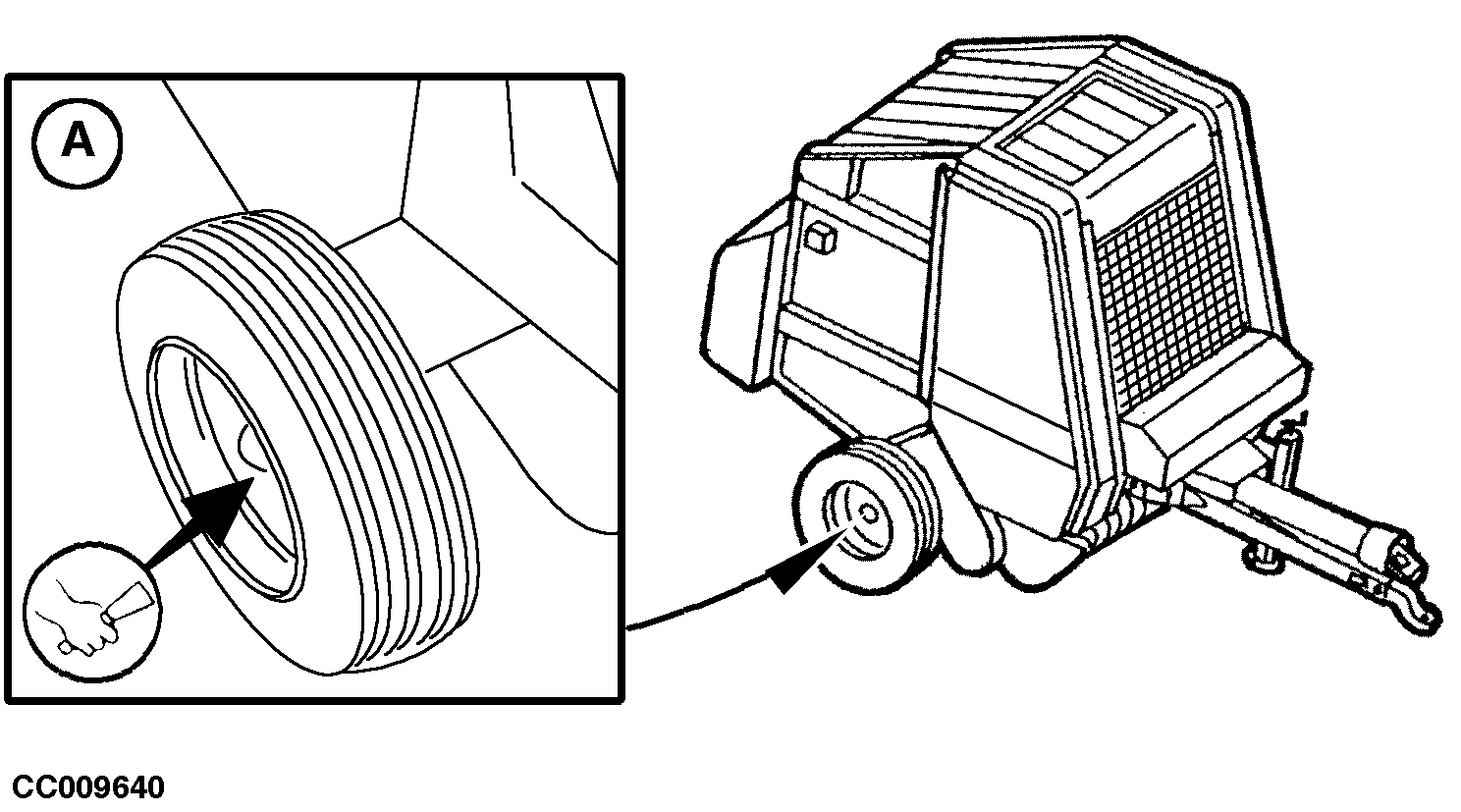

CC009640


A-Wheel Bearings



Remove wheels. Clean bearings.

Lubricate with John Deere GREASE-GARD.

Repack and adjust bearings.

For balers equipped with wheel nuts, tighten the nuts to the following specification:

Specification

Wheel Nut -Torque 210 N·m (155 lb-ft)

For balers equipped with wheel bolts, tighten the bolts to the following specification:

Specification

Wheel Screw -Torque 120 N·m (88 lb-ft)

OUCC006,0000CA9 -19-06OCT04-1/4

Lubricate with John Deere GREASE-GARD.

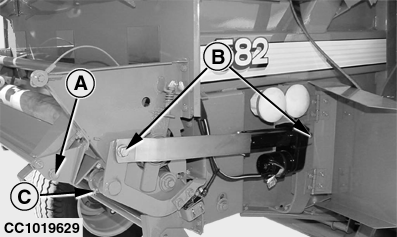

A-Lower tension arm pivot
B-Net actuator pins
C-Swinging bar pivot (both sides)

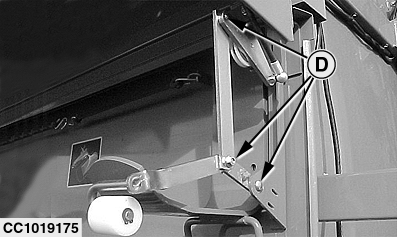

D-Net box pivots (both sides)

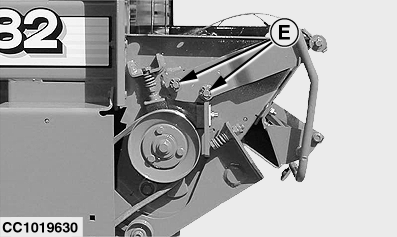

E-Brake pad pivots

CC1019629
CC1019175
CC1019630

OUCC006,0000CA9 -19-06OCT04-2/4

Lubricate with John Deere GREASE-GARD.

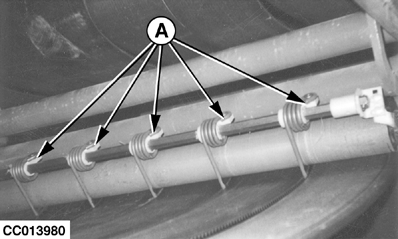

A-Roll NR 10 tooth mountings

CC013980

OUCC006,0000CA9 -19-06OCT04-3/4

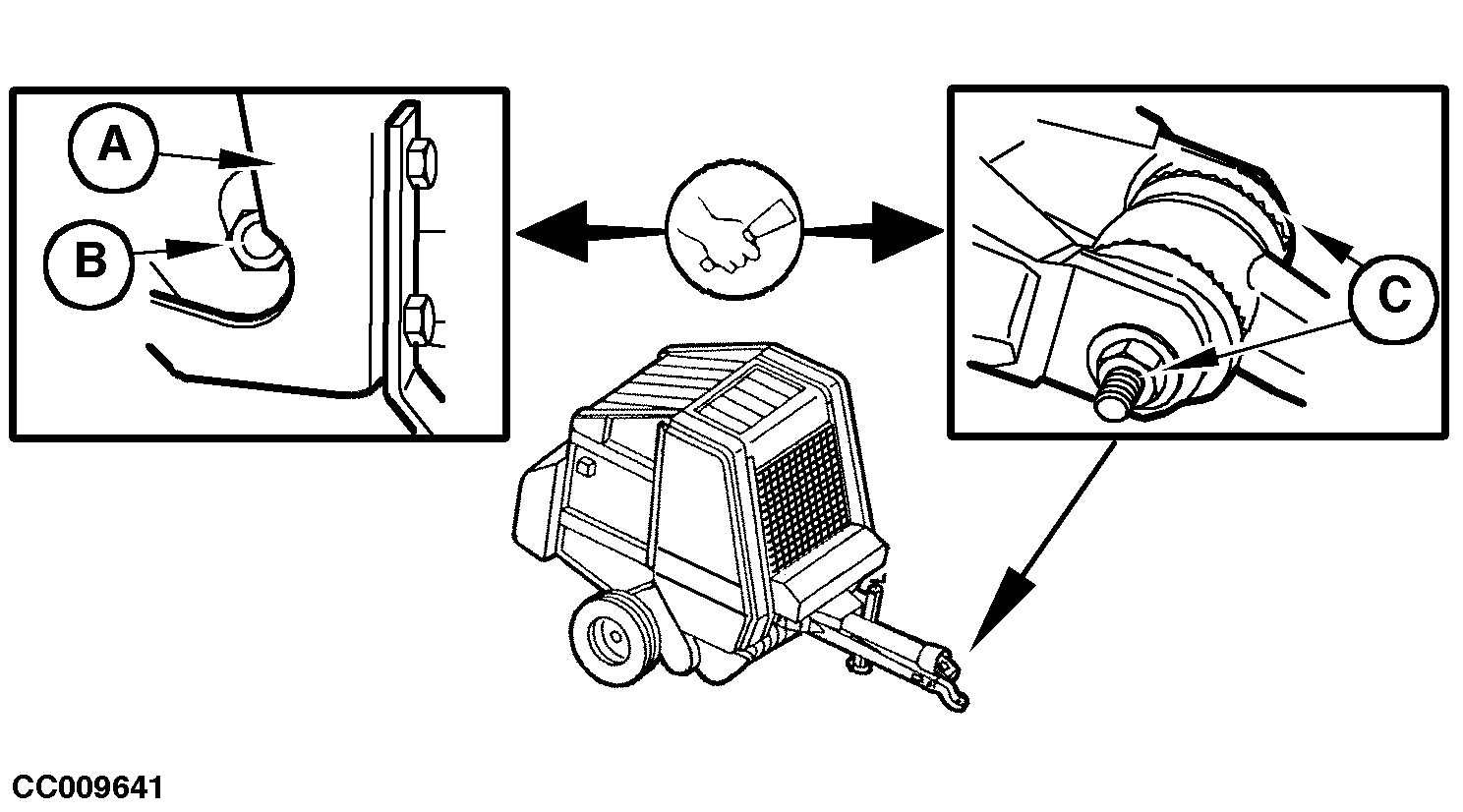

CC009641

Retighten nuts (A) of tongue frame attaching screws to 700 N·m (516 lb-ft) and lock nuts (B) to 300 N·m (221 lb-ft).

Retighten hitch plate attaching screw (C) to 620 N·m (450 lb-ft).

OUCC006,0000CA9 -19-06OCT04-4/4
