Adjusting 2.00 m (6 ft 7 in.) Precutter Pickup Gauge Wheels (with Transport Position)

IMPORTANT: Gauge wheels are not designed to be in constant contact with the ground.

Adjusting Pickup Gauge Wheels in Operating Position

1. Adjust the pickup height.

2. Act on selective control valve lever to fully lower the pickup.

3. Remove spring-locking pin (A) then choose one of the positioning holes (B) to fix support (C) so that gauge wheel is just above the ground (gauge wheel must be approximately at the same height as pickup teeth).

Install spring-locking pin (A).

Repeat procedure on opposite side.

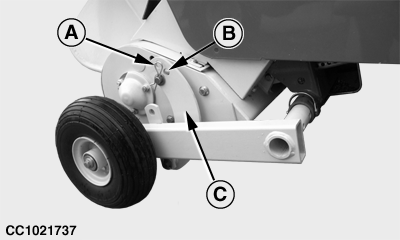

CC1021737


A-Spring-locking pin
B-Positioning holes
C-Support

OUCC006,0000CB7 -19-29OCT04-1/2

Adjusting Pickup Gauge Wheels in Transport Position

1. Remove quick lock pin (C).

2. Remove spring-locking pin (A).

3. Secure support (B) on gauge wheel arm (D) with spring-locking pin (A).

4. Rotate gauge wheel arm (D) and slide it as shown. Secure it with quick lock pin (C).

Repeat procedure on opposite side.


A-Spring-locking pin
B-Support
C-Quick lock pin
D-Gauge wheel arm

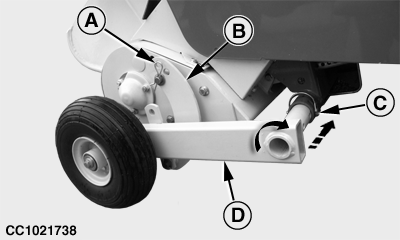

CC1021738

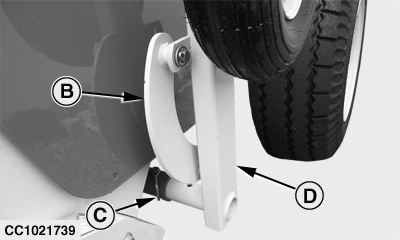

CC1021739

OUCC006,0000CB7 -19-29OCT04-2/2
