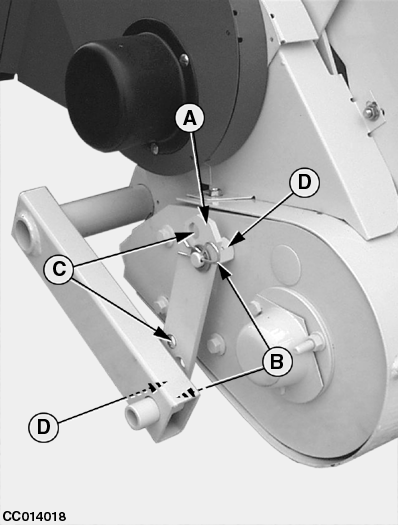

Adjusting 2.00 m (6 ft 7 in.) Precutter Pickup Gauge Wheels (without Transport Position and with Downstop)IMPORTANT: Gauge wheels are not designed to be in constant contact with the ground NOTE: Before adjusting the gauge wheels, adjust the precutter pickup height. 1. First check that precutter pickup operating mode is activated.2. Act on selective control valve lever to fully lower the pickup. 3. Remove spring-locking pins (B) then choose one of the positioning holes (C) to fix support (A) on studs (D) so that gauge wheel is just above the ground (gauge wheel must be approximately at the same height as pickup teeth). Install spring-locking pins (B). Repeat procedure on opposite side. |
|
OUCC006,0000CE5 -19-07JUN05-1/1 |
