Adjusting Bale Size (up to S.N. 48999)

The gate must be closed and the tension arm fully down before making bale size adjustment.

Adjust as follows:

Loosen wing nut (A).

Turn cam (B) until desired mark is level with switch roller (C). Adjusting ranges are:

• From "1" to "4.5" on 572 baler.
• From "1" to "5" on 582 baler.
• From "1" to "6" on 592 baler.

Tighten wing nut (A) and check that cam (B) is still aligned with switch roller (C).

NOTE: On balers equipped with the soft core option, the second cam (D) is the soft core diameter cam. Take care not to modify the position of this cam when adjusting the bale size cam (B).

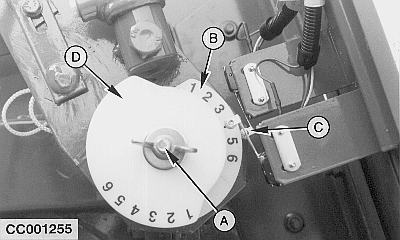

A-Wing nut
B-Cam
C-Switch roller
D-Soft core cam

OUCC006,0000CE7 -19-15OCT04-1/1
