Checking Net Feed Roll Brake (Test 6)

IMPORTANT: Prior to this test, make sure that test 1 to 5 results are "OK". Proceed to the relevant tests described in this section.

IMPORTANT: The net feed roll brake adjustment must be performed before using the baler.

Proceed as follows:

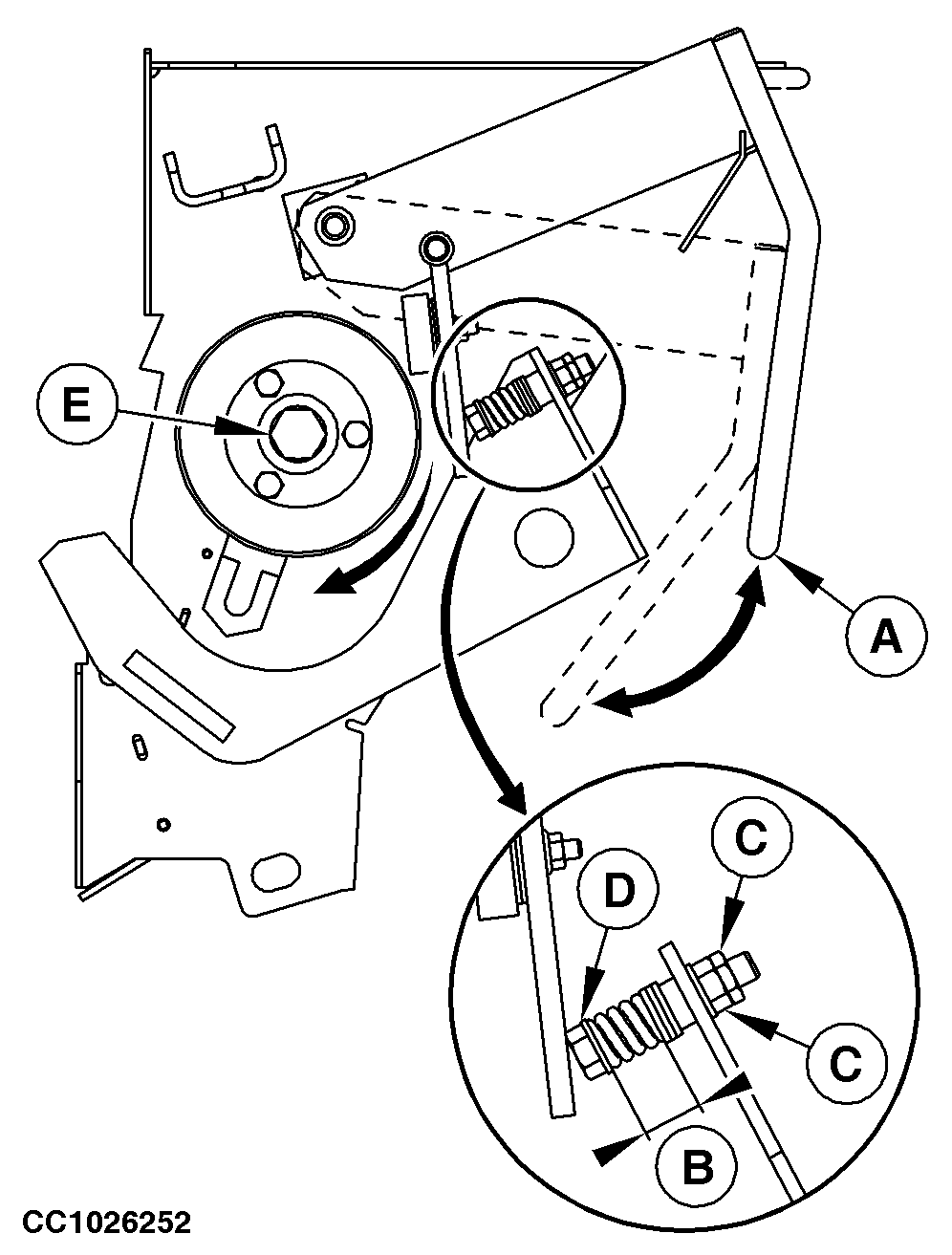

2. Release net feed roll brake lever (A).

3. Check that spring length (B) is within specifications.

Specification

If necessary, adjust spring length (B) as follows:

a. Loosen the two lock nuts (C).

b. Turn bolt (D) clockwise to decrease or counterclockwise to increase spring length (B).

4. Apply net feed roll brake lever (A).

5. Check that torque of rubber feed roll bolt (E) is within specifications.

Specification

A-Net feed roll brake lever
B-20 mm (0.78 in.)
C-Lock nuts
D-Bolt
E-Rubber feed roll bolt

OUCC006,0000CF6 -19-04NOV04-1/2

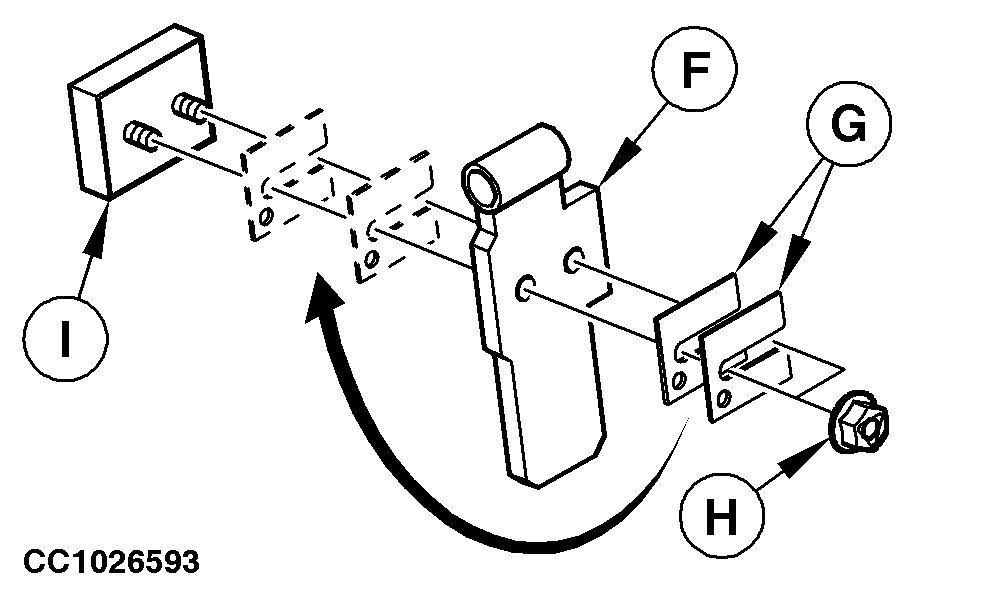

If torque is less than specifications, adjust torque as follows:

a. Release net feed roll brake lever (A).

b. Loosen nuts (H).

c. Transfer one or two shims (G) between rubber brake pad (I) and its support (F).

d. Tighten nuts (H).

e. Apply net feed roll brake lever (A).

f. Check that torque is within specifications.

Specification

a. Release net feed roll brake lever (A).

b. Remove lock nuts (B).

c. Add one washer (D) between spring (E) and support (C).

d. Reinstall and tighten lock nuts (B).

e. Apply net feed roll brake lever (A).

f. Check torque.

Proceed to test 7.

A-Net feed roll brake lever
B-Lock nuts
C-Support
D-Washer
E-Spring
F-Support
G-Shims
H-Nuts
I-Rubber brake pad

OUCC006,0000CF6 -19-04NOV04-2/2
