Adjusting Lower Gate Roll (NR 9) Scraper

1. Unscrew fixing screws (B) to adjust scraper (A).

2. Scraper (A) must be adjusted as close as possible to roll (C), leaving enough space to avoid any contact with the roll.

3. Tighten fixing screws (B) to following torque:

Specification

Lower Front Gate Roll Scraper -Torque 55 N·m (40 lb-ft)


A-Scraper
B-Screw
C-Roll

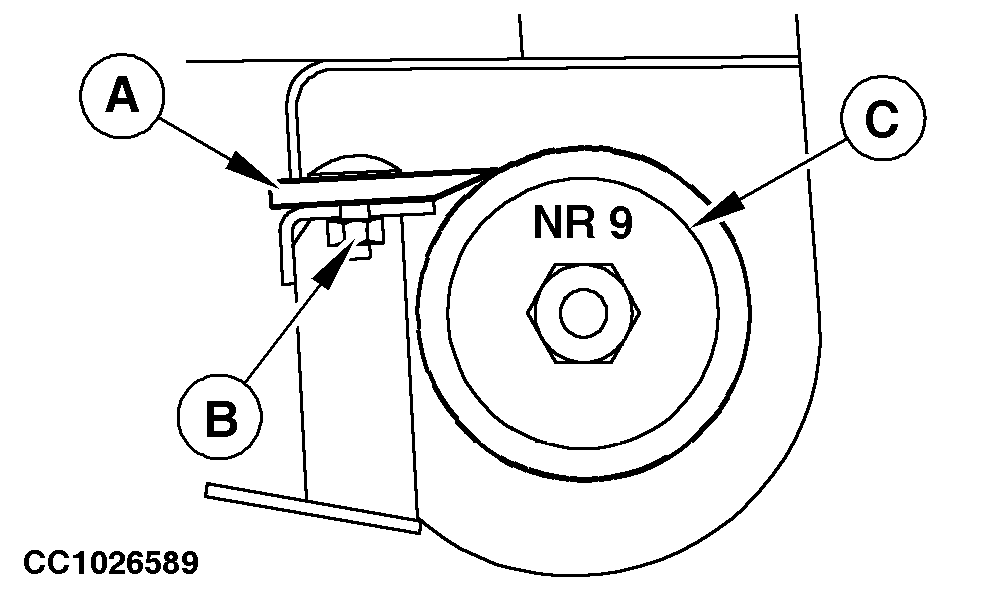

CC1026589

Baler w/o Net Tying Device

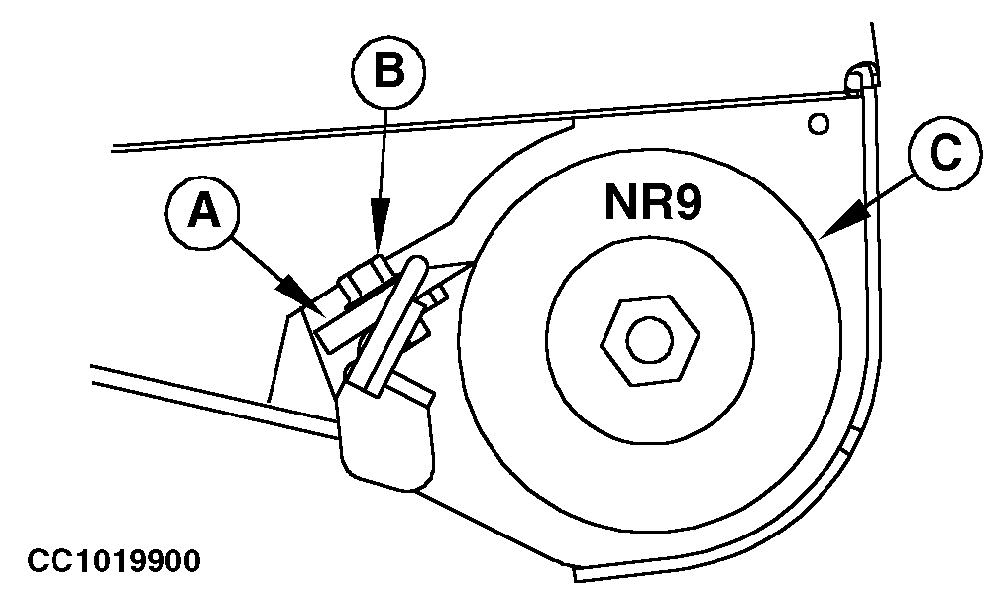

CC1019900

Baler with Net Tying Device

OUCC006,0000E35 -19-24FEB05-1/1
