Installing 2.00 m (6 ft 7 in.) Precutter Pickup Gauge Wheels

On each side:

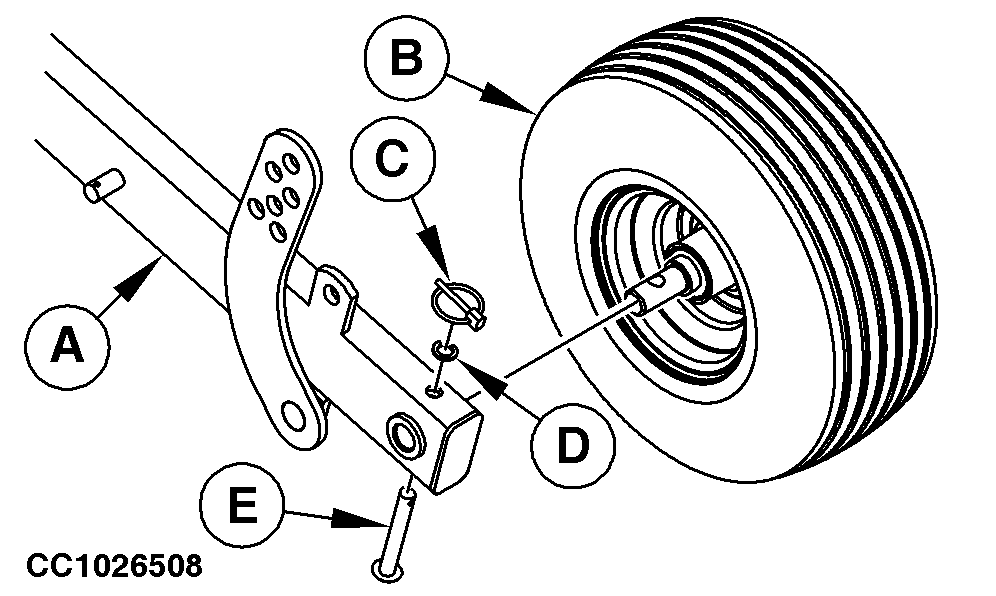

Install wheel assembly (B) on arm (A) using pin (E), washer (D) and quick lock pin (C).

A-Gauge wheel arm
B-Wheel assembly
C-Quick lock pin
D-Washer
E-Fastener pin

OUCC007,0000E95 -19-01OCT04-1/1
