OMCC58341: 572, 582 and 592 Round Balers, Block File: OUCC007_0000E96_19

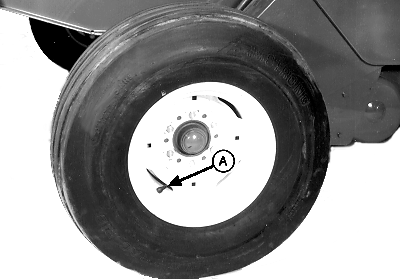

IMPORTANT: Install wheels with valve stems toward outside.

Incorrect assembly can cause wheel nuts or bolts to loosen.

For balers equipped with wheel nuts, tighten the nuts to the following specification:

Specification

Wheel Nut -Torque

210 N·m (155 lb-ft)

For balers equipped with wheel bolts, tighten the bolts to the following specification:

Specification

Wheel Bolt -Torque

120 N·m (88 lb-ft)

A-Valve stem

OUCC007,0000E96 -19-04OCT04-1/1
