Channels 006 and 007: Calibration of Bale Shape Potentiometer

"CH006" allows to set the position of right bale shape potentiometer and "CH007" the left bale shape potentiometer.

The adjusting procedure is the same for both sides. Use the appropriate channel for each side.

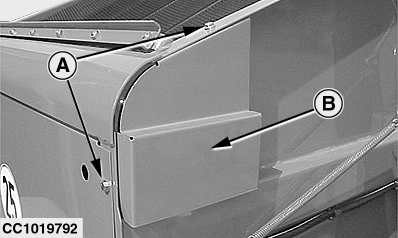

Remove fixing screws (A) and shield of potentiometer (B).

Close the gate and move belt arm tension to its lowest position with tractor selective control valve lever.

Engage PTO a few seconds to remove slack. Act on selective control valve lever again to be sure the belt tension arm is in low position.


A-Fixing screws
B-Shield
C-Right Bale Shape Potentiometer

CC1019792
CC1019793

OUCC007,0000EAD -19-15OCT04-1/2

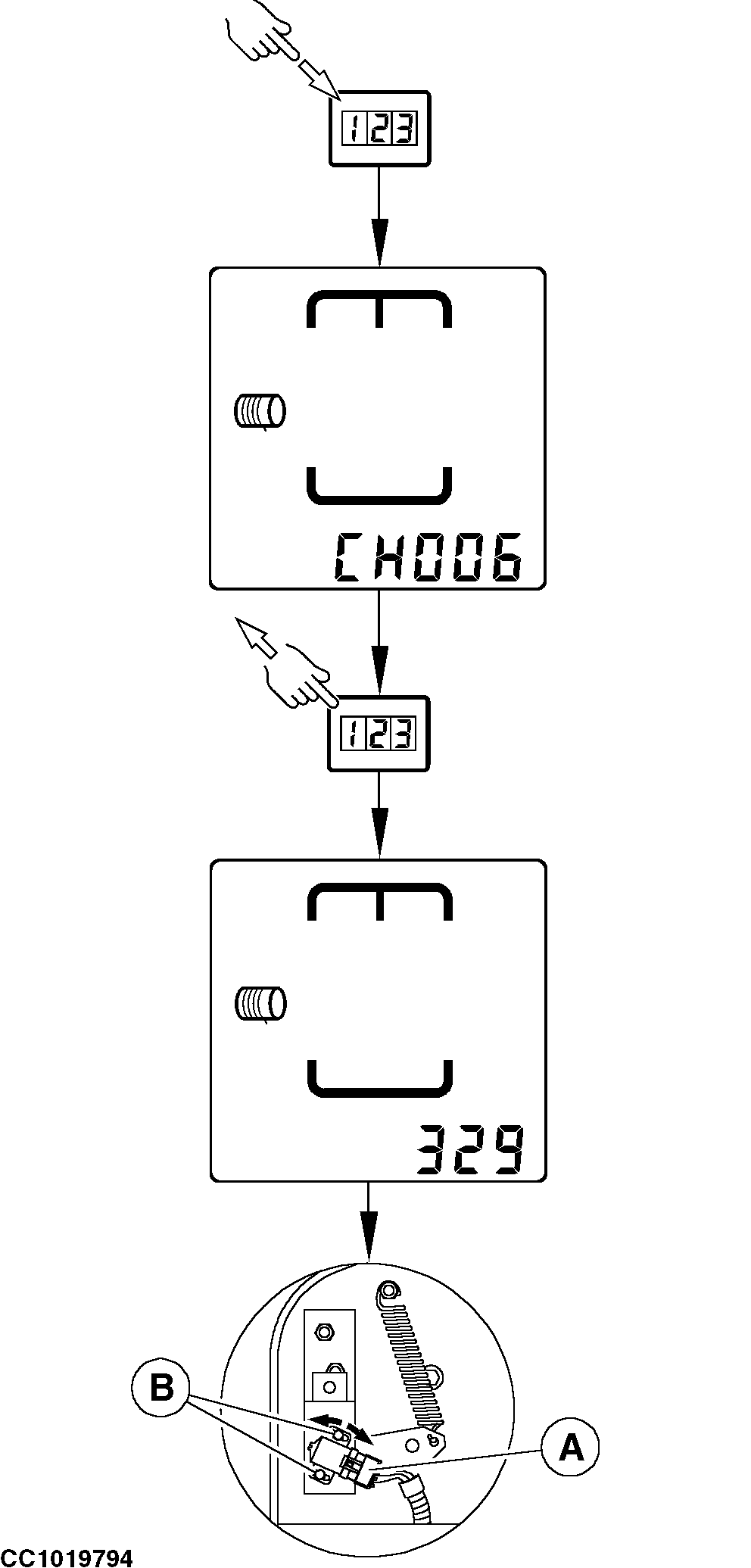

Press "PLUS" key to display the setting value corresponding to baler model.

Loosen the two mounting screws (B) and rotate the potentiometer (A) so that monitor beeps continuously and LCD screen displays the value (± 5) corresponding to baler model.

Tighten mounting screws (B).

Reinstall shield of potentiometer.

· If this calibration does not give the expected result, make a fine tuning. (See Channels 006 and 007: Calibrating Bale Shape Potentiometer-Fine Tuning in Setting Up the Baler section.)


A-Right bale shape potentiometer
B-Mounting screws

CC1019794

OUCC007,0000EAD -19-15OCT04-2/2
