Front Safety Curtains
 CAUTION:

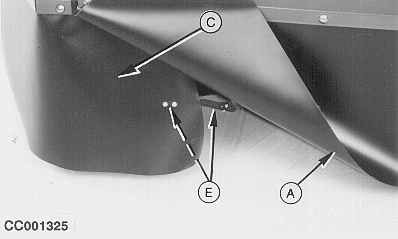

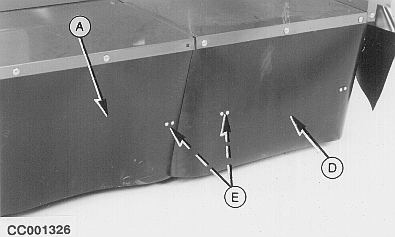

When operating the mower-conditioner, always ensure that front curtain (A) is in lowered position and that it is latched together with the side curtain (C) and with the small front curtain (D). Use straps (E) to keep the curtains together.

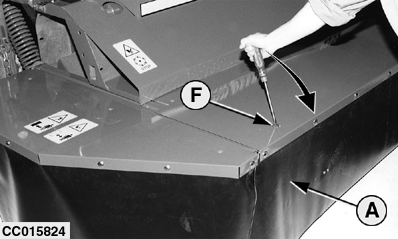

To raise the front safety curtain (A), introduce a screwdriver in the groove of lock (F), pull it as shown and lift the front curtain.

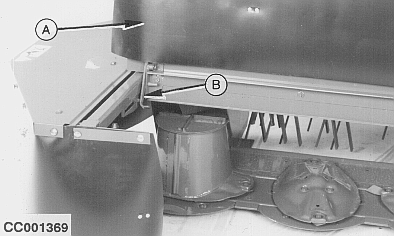

Front safety curtain (A) can be automatically maintained in fully raised position by means of retainer (B) to allow access to the cutterbar for service.
A-Front curtain
B-Retainer
C-Right-hand side curtain
D-Small front curtain
E-Straps
F-Lock
|
