Adjusting Cutting Height

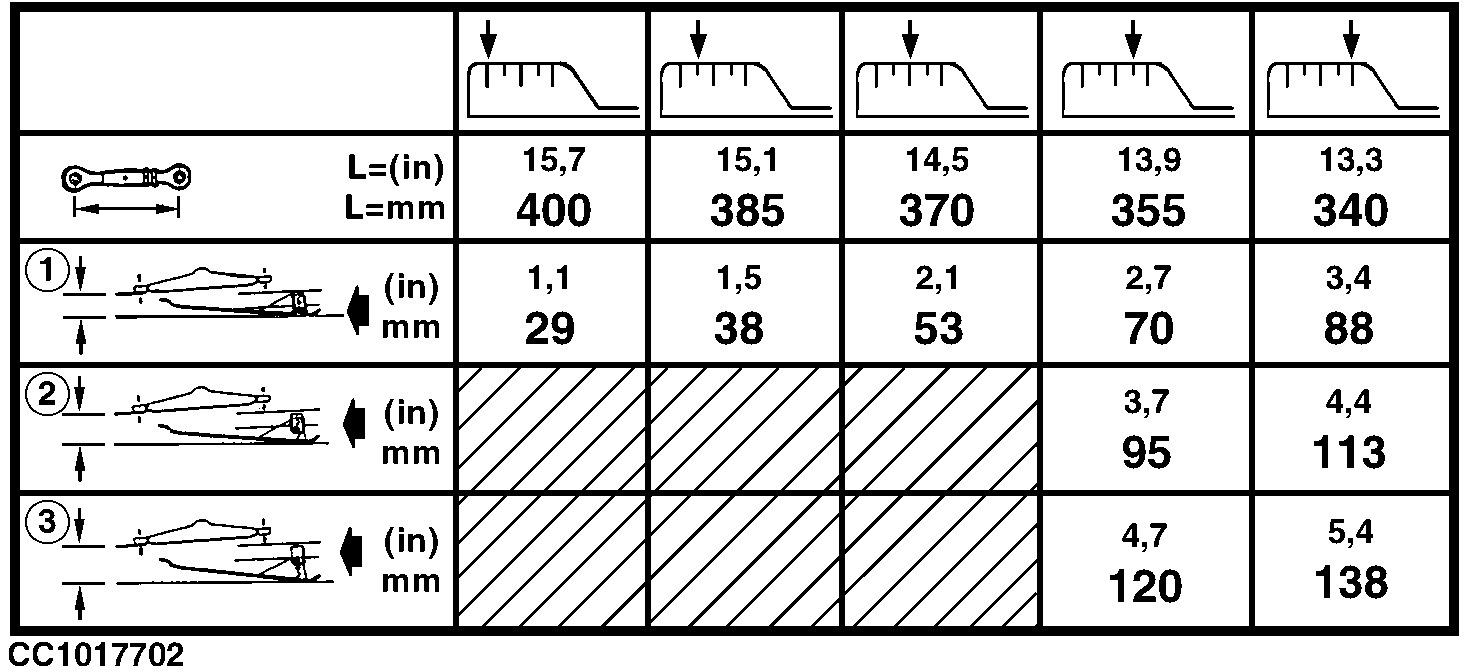

CC1017702

Cutting height can be modified by altering either length (L) of right-hand and left-hand turnbuckles or position of right-hand and left-hand skid shoes. This will change the initial adjustment of the platform ground pressure.

Refer to chart above to determine value of length (L) and skid shoe positions (1, 2 and 3) relative to cutting height.

IMPORTANT:

To alter cutting height, proceed as follows:

1. Adjust the right-hand turnbuckle.
2. Adjust the left-hand turnbuckle until rod is loose.
3. Shorten the left-hand turnbuckle one additional turn.

NOTE: Each time cutting height is altered, readjust the platform float as described under "Adjusting Platform Float" in this Section.

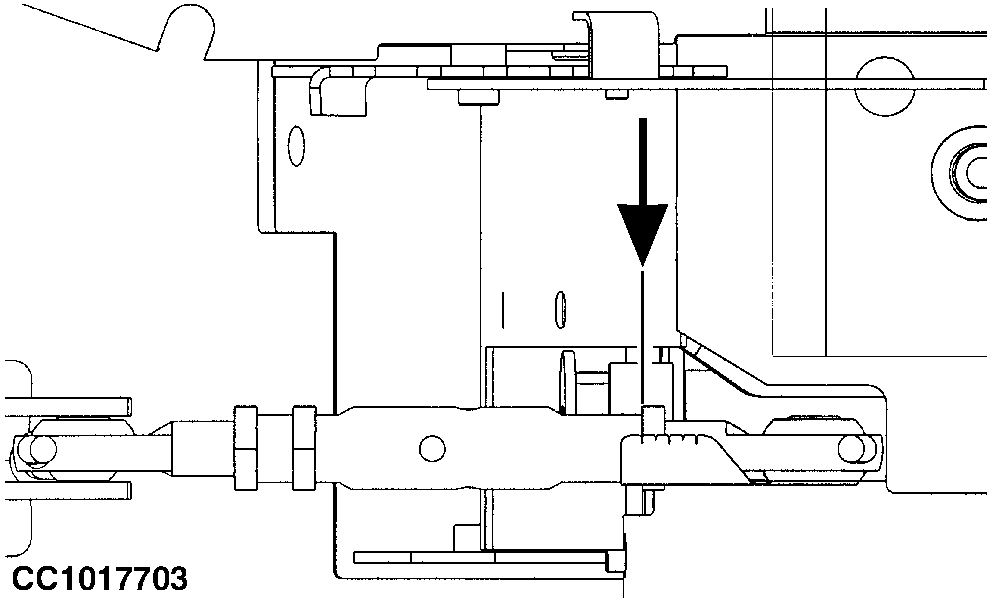

CC1017703

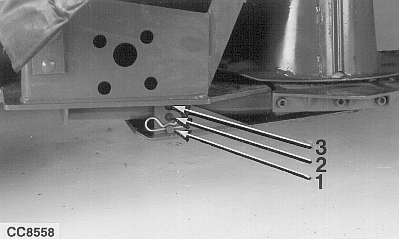

CC8558
