Adjusting Wide Rear Windrow Deflector (Option)

NOTE: Windrow width can be increased up to 2.13 m (7 ft) on 1365-1465 and up to 1.60 m (4.30 ft) on the 1355 mower-conditioner.

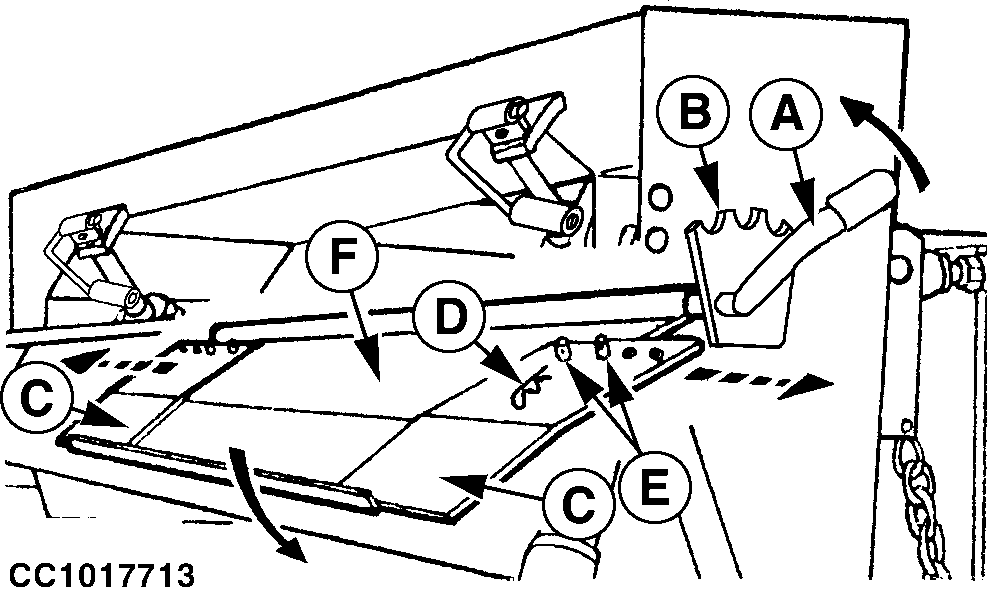

To increase windrow width, pull lever (A) rearward and secure in one of slots (B). Push the two adjustable plates (C) outside plate (F) and secure with spring pins (D) on studs (E).

To decrease windrow width, reverse procedure described above.

NOTE: The wide rear windrow deflector must be always set in up position (lever full forward) when using the grouper.

A-Lever
B-Slots
C-Adjustable plates
D-Spring pins
E-Studs
F-Plate
