Installing and Removing Platform Cylinder Stops

CAUTION: Always engage safety stops when servicing the mower-conditioner in raised position.

Hydraulically raise mower-conditioner and place cylinder stops (A) in lock-out position to prevent machine from lowering in the event of a hydraulic system failure.

Lower machine until cylinders (B) rest on stops.

Hydraulically raise mower-conditioner and remove cylinder stops (A).

Lower machine.

IMPORTANT: Never engage platform cylinder stops during transport on the road.

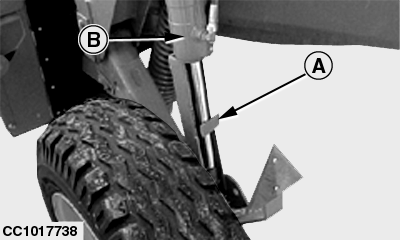

A-Cylinder stop
B-Cylinder

AG,OUCC006,365 -19-10MAY00-1/1
