Grouper Lock Device

CAUTION: When working beside or under the canvas frame in raised position, the grouper frame locking device must be moved to locked position. Use this safety feature any time grouper is raised.

To secure the grouper frame, proceed as follows:

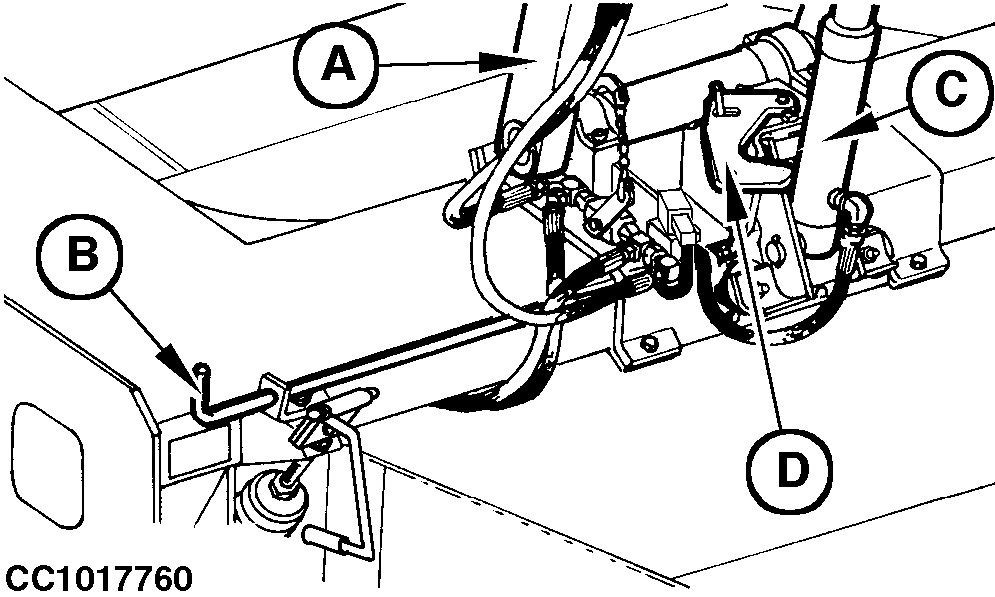

Fully raise the grouper frame (A). Pull lock lever (B) and simultaneously rotate it clockwise so that hydraulic cylinder (C) is firmly latched by hook (D). Release lock lever (B).

To unhook lock device, pull lock lever (B) and simultaneously rotate it counterclockwise so that hydraulic cylinder (C) is unlatched. Release lock lever (B).

A-Grouper frame
B-Lock lever
C-Hydraulic cylinder
D-Hook
