Adjusting Grouper Canvas Frame Position

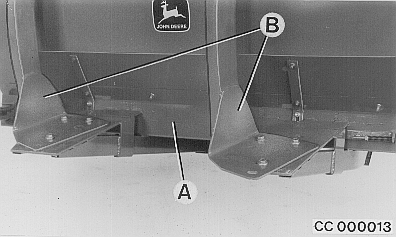

Depending on crop conditions (1st cut, 2nd cut) and windrow width, canvas frame (A) can be installed in several positions by relocating it on tubular frame supports (B) to shift the windrow better.

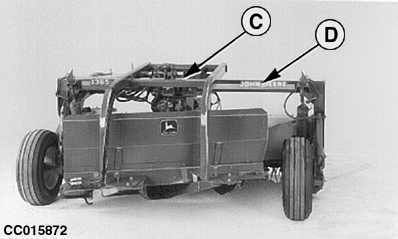

In addition, the windrow can be shifted further to the left or right by sliding tubular frame (C) along the mower-conditioner's carrier frame (D).

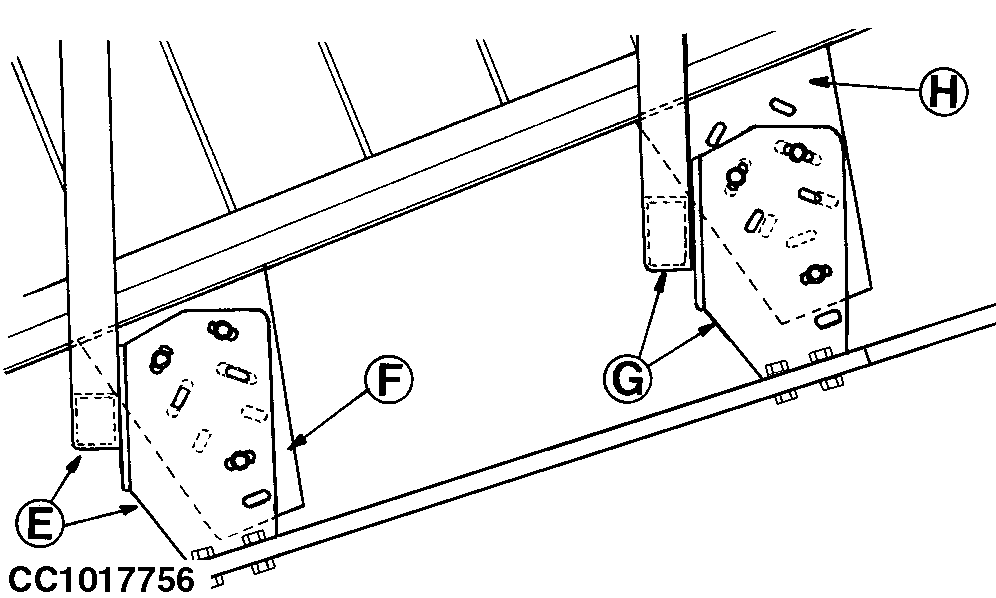

For example: On 1365, 1465 mower-conditioner left-hand tubular frame support (E) is originally fixed in the foremost fixing holes of left-hand canvas frame support (F) and right-hand tubular frame support (G) is fixed in the rearmost fixing holes of right-hand canvas frame support (H).

To perform the 2nd cut conditions, install the canvas frame (A) so that left-hand tubular frame support (E) is fixed in the rearmost fixing holes of canvas frame support (F) as it is on the right-hand side.

A-Canvas frame
B-Tubular frame supports
C-Tubular frame
D-Carrier frame
E-Left-hand tubular frame support
F-Left-hand canvas frame support
G-Right-hand tubular frame support
H-Right-hand canvas frame support

AG,OUCC006,367 -19-15MAY00-1/1
