Every 400 Hours (Self-Contained Hydraulic Circuit Drive Only)

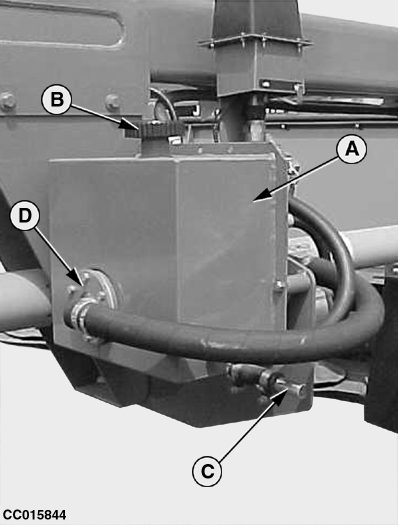

Drain and refill hydraulic pump oil reservoir (A):

1. Open reservoir cap (B).

2. Remove drain plug (C).

3. Remove and clean oil filter (D).

4. Reinstall drain plug (C).

5. Refill oil reservoir (A) with about 10 liters (2.64 US gal). Use oil specified under "Transmission and Hydraulic Oil".


A-Hydraulic pump oil reservoir
B-Cap
C-Drain plug
D-Oil filter

CC015844

AG,OUCC006,368 -19-15MAY00-1/1
