Replacing Hydraulic Pump Drive Belt (Pin Drawbar Tongue)

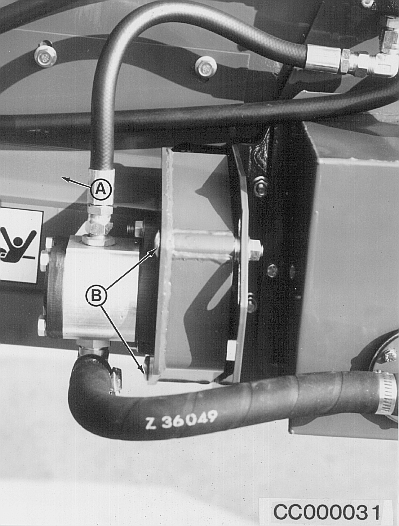

Remove slip clutch shield (A).

Loosen locking screws (B) to release belt tension.

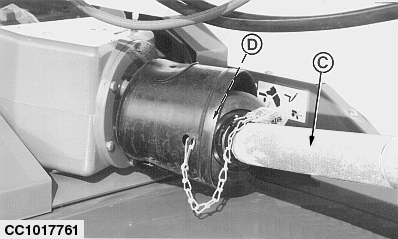

Disengage rear driveline (C) from input bevel gear case shaft (D).

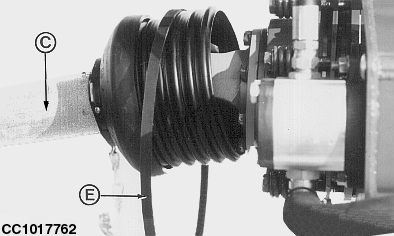

Remove belt (E) from the pulleys, then pass it around the driveline (C) to discard it.

In case of a mower-conditioner equipped for 540 rpm PTO, install a 1000 mm (3.28 ft) long drive belt.

In case of a mower-conditioner equipped for 1000 rpm PTO, install a 807 mm (2.64 ft) long drive belt.

Reinstall new belt on pulleys. Adjust drive belt tension as described under "Adjusting Hydraulic Pump Drive Belt Tension" in this Section, then reinstall all parts previously removed.


A-Slip clutch shield
B-Locking screws
C-Rear driveline
D-Input bevel gear case shaft
E-Belt

CC000031
CC1017761
CC1017762

AG,OUCC006,369 -19-15MAY00-1/1
