Adjusting Draft Links (Linkage Drawbar Tongue Only)

Mower-conditioners equipped with linkage drawbar tongue can be attached to any tractor with a three-point hitch conforming to category II, III or III N. See your John Deere dealer to adapt the features of your tractor to those offered by the linkage drawbar tongue.

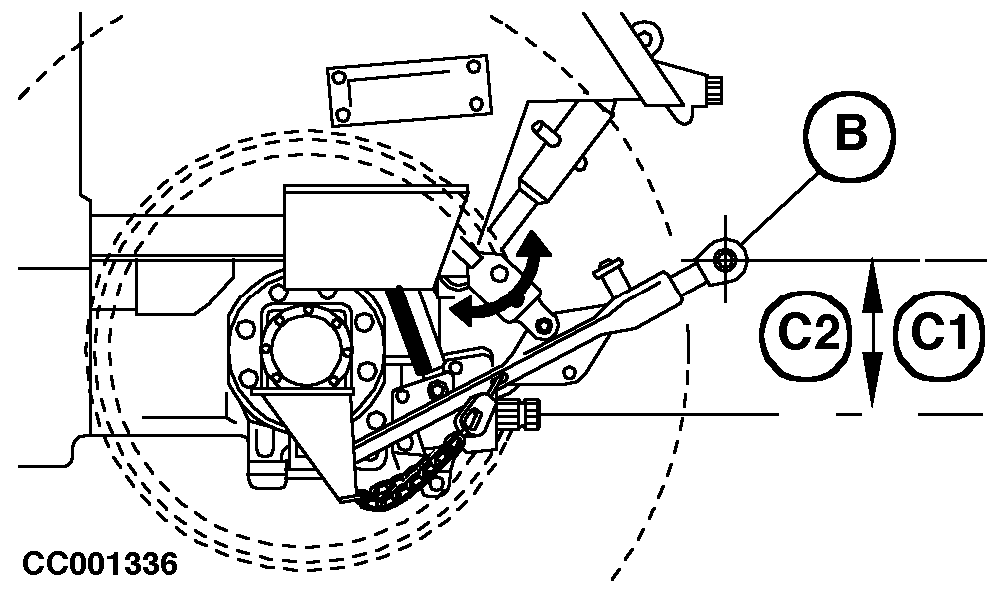

If necessary, raise and adjust the draft links (B) so that distance between PTO shaft center line and center line of draft links is (C1) 298 mm (11.73 in.) or (C2) 228 mm (8.97 in.) in accordance with tongue end position (See "Adjusting Linkage Drawbar Tongue" in "Preparing the Mower-Conditioner" section).

B-Draft links
C1-298 mm (11.73 in.)
C2-228 mm (8.97 in.)
