Side Safety Curtains

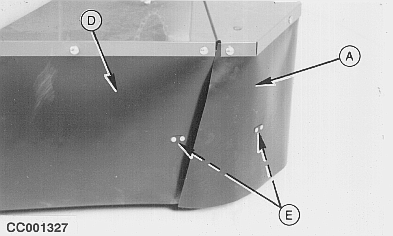

CAUTION: When operating the mower-conditioner, always ensure that side curtains (A) are in lowered position and latched together with front curtains (C) and (D). Use straps (E) to keep the curtains together.

Side safety curtains (A) are automatically maintained in the fully raised or lowered position.

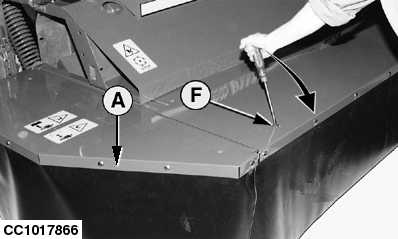

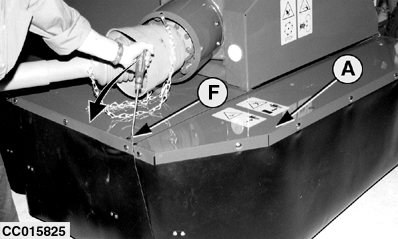

To raise the side safety curtain, introduce a screwdriver in the groove of lock (F), pull it as shown and lift the side curtain.

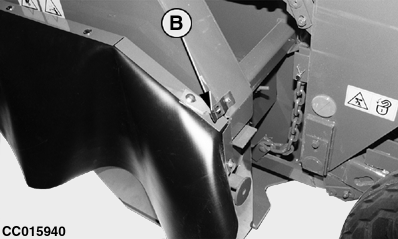

To lower the side curtains pull latch (B) and lower the side curtain.

A-Side curtain
B-Latch
C-Front curtain
D-Small front curtain
E-Straps
F-Lock
