Locking system tight or completely seized

Locking system soiled

Clean and grease lock and yoke shank

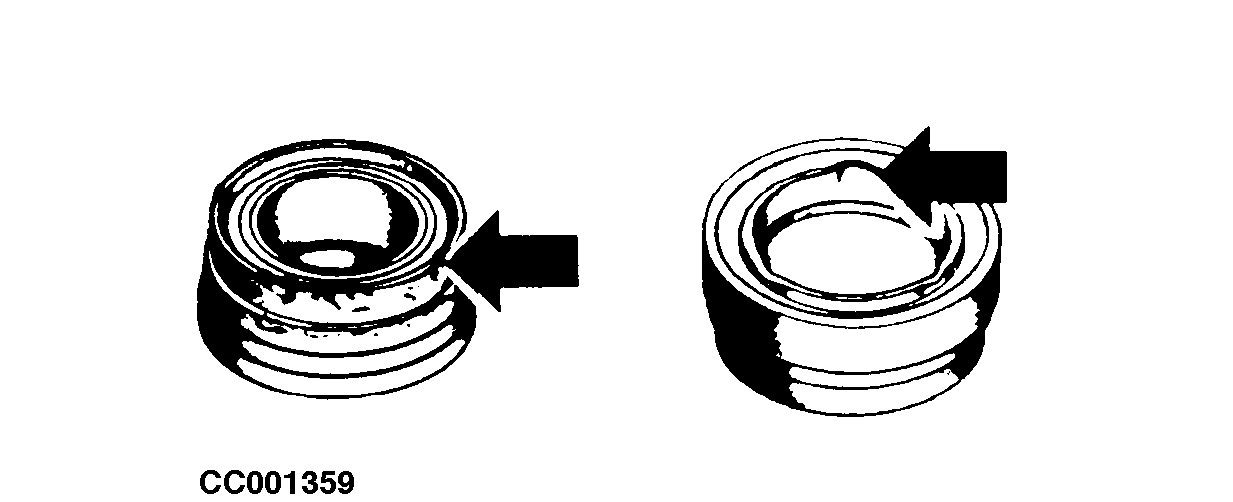

Locking system damage on the outside (due to forced engagement, incorrect handling, insufficient clearance)

Follow service instructions, replace sleeve, provide more clearance

Axial forces too high

Clean and grease profile tubes, or replace tubes, if necessary

Sleeve deformed in the area of the balls, excessive shaft length

Adjust shaft length. See "Preparing the Mower-Conditioner" Section

Replace locking system

AG,OUCC006,397 -19-08JUN00-1/1
