Tight telescopic sections

Profiles soiled (insufficient maintenance)

Clean and grease profiles. See "Lubrication and Maintenance" Section

Profile tubes seized (insufficient maintenance)

Replace parts

Clean and grease profiles. See "Lubrication and Maintenance" Section

Profile tube not deburred after shortening

Deburr telescopic section after shortening

Replace parts

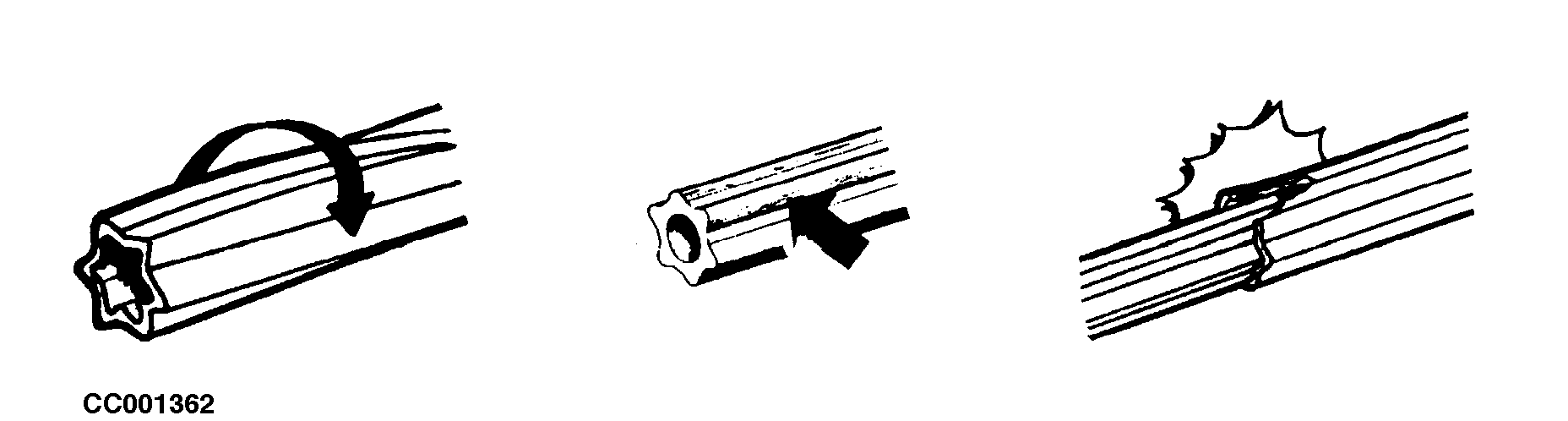

Telescopic sections splayed or split

Profile overlap too short

Provide at least minimum profile overlap. See "Preparing the Mower-Conditioner" Section

Replace parts

Telescopic sections distorted

Overload caused by high starting and peak torques or blocking

Adjust slip clutch to specified PTO rated speed. See "Service" Section

Replace parts
