Adjusting Slip Clutch -Mower-Conditioner With Linkage Drawbar Tongue or With Swivel Hitch

IMPORTANT: The slip clutch has been designed to protect the drive train.

Do not overtighten! Overtightening will lessen this protection.

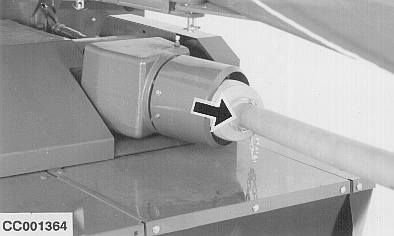

Remove slip clutch shield.

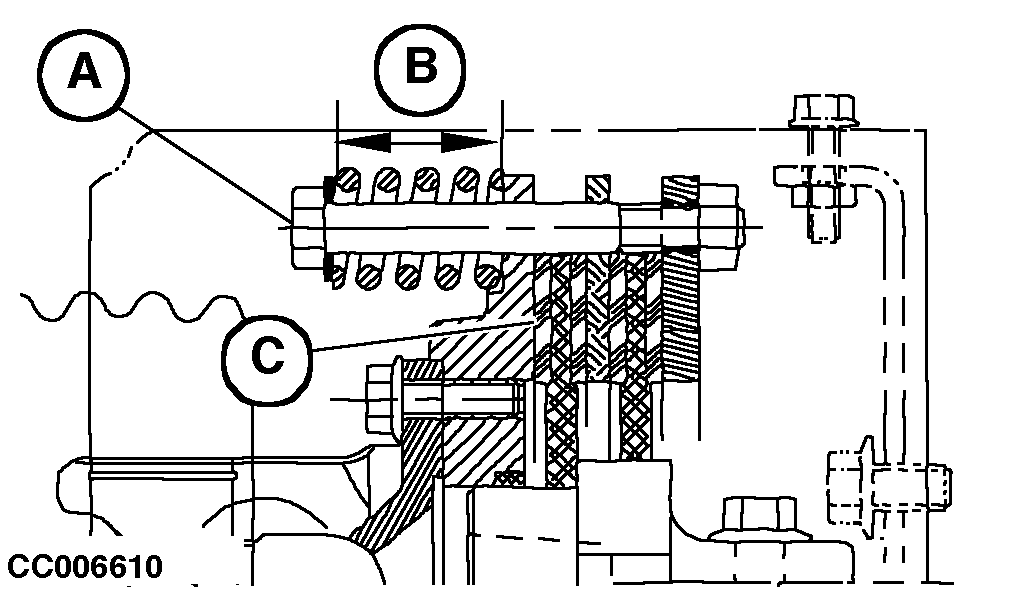

Tighten or loosen spring adjusting nuts (A) until specified spring dimension (B) has been obtained.

Wear of slip clutch facing (C) will alter length (B) of spring and adjustment will have to be made.


A-Adjusting nuts
B-39.8±0.8 mm (1.56±0.03 in.) - 540 rpm PTO
43.7±0.8 mm (1.72±0.03 in.) - 1000 rpm PTO
C-Slip clutch facing

CC001364
CC006610

AG,OUCC006,404 -19-14JUN00-1/1
