Adjusting Hydraulic Pump Drive Belt Tension (Pin Drawbar Tongue)

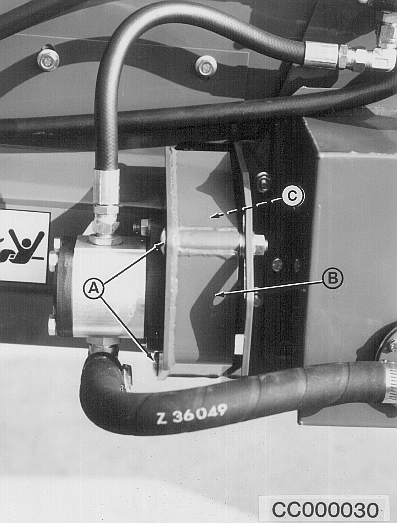

Loosen locking screws (A), then slide the hydraulic pump support (B) so that drive belt (C) is correctly tightened.

Tighten locking screws (A).

A-Locking screws
B-Hydraulic pump support
C-Drive belt

AG,OUCC006,405 -19-14JUN00-1/1
