Adjusting Wheel Bearings

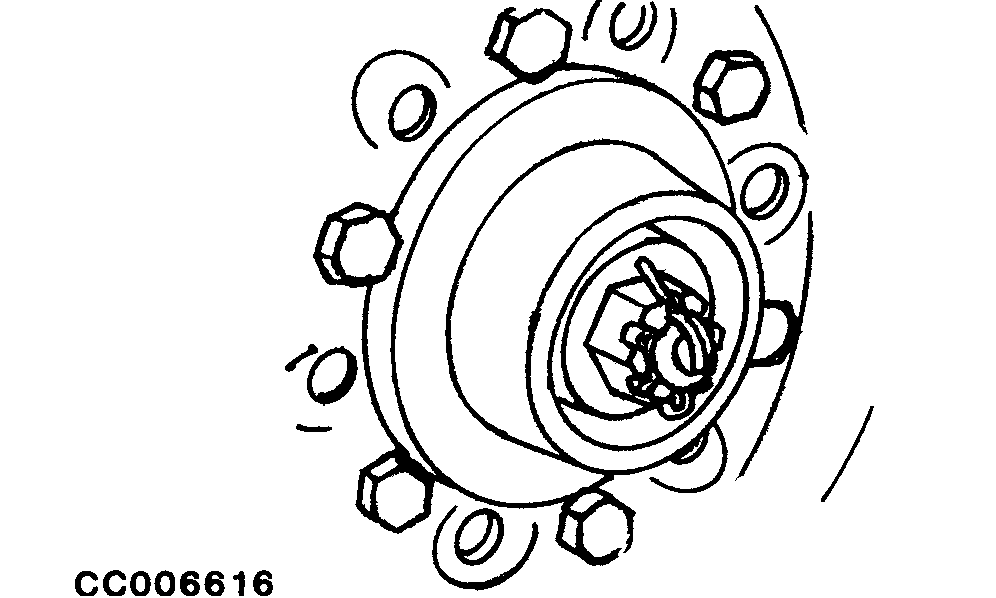

To adjust wheel bearings, jack up wheel, remove hub cap and cotter pin.

Tighten adjusting nut to 1.7 N·m (1.25 lb-ft), then back off by one slot and secure with a new cotter pin.

Reinstall hub cap.

CC,1350MC001900 -19-27AUG94-1/1
