Adjusting Slip Clutch -Mower-Conditioner With Pin Drawbar Tongue

IMPORTANT: The slip clutch has been designed to protect the drive train.

Do not overtighten! Overtightening will lessen this protection.

Remove slip clutch shield.

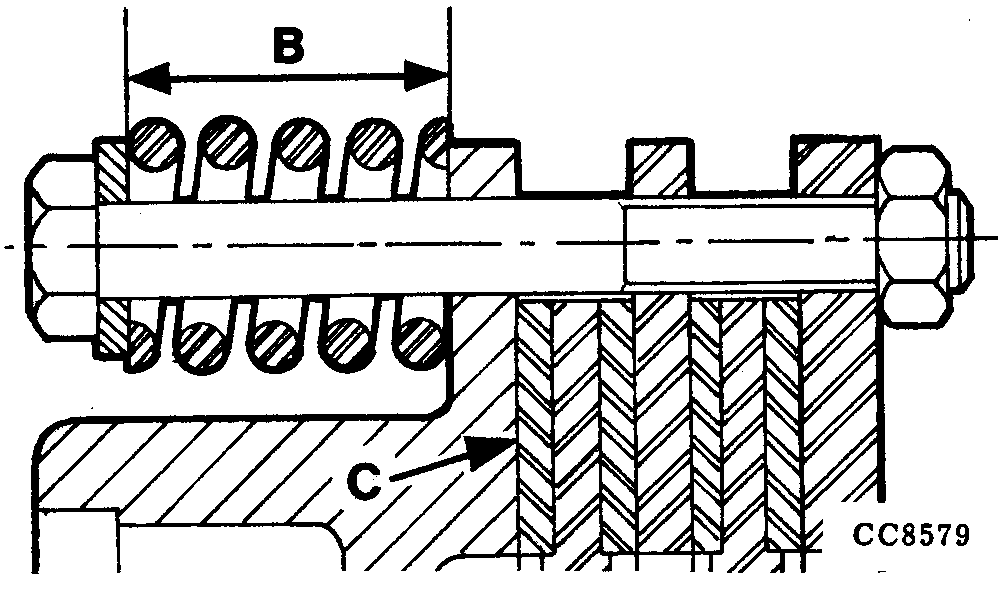

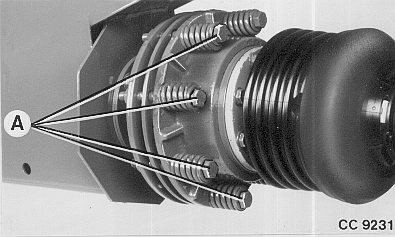

Tighten or loosen spring adjusting nuts (A) until specified spring dimension (B) has been obtained.

Wear of slip clutch facing (C) will alter length (B) of spring and adjustment will have to be made.

A-Adjusting nuts
B-39.8±0.8 mm (1.56±0.03 in.)
C-Slip clutch facing

CC,1350MC003692 -19-12DEC96-1/1
