Operating Rope Control Positioner

A mechanical device allows the mower-conditioner to be shifted from transport to operating position and vice versa from the tractor.

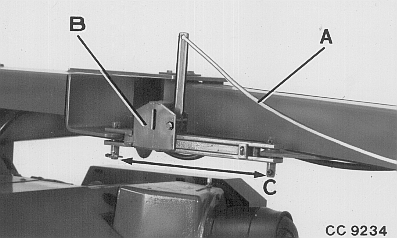

Pull rope (A) to release lock (B).

To change from operating to transport position, reverse tractor toward right-hand side. To simplify this operation, keep the platform on ground.

Lock (B) will engage automatically.

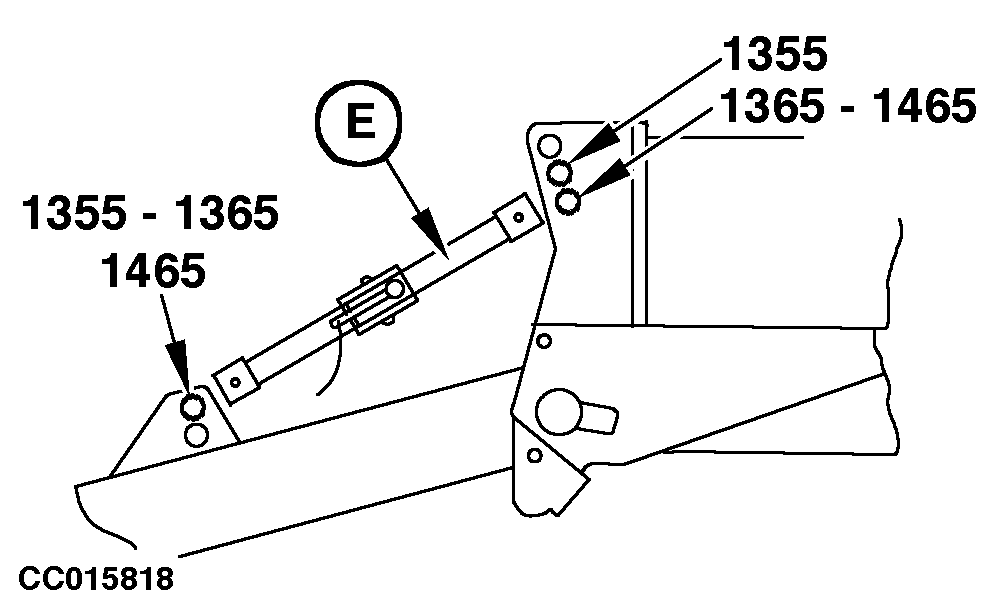

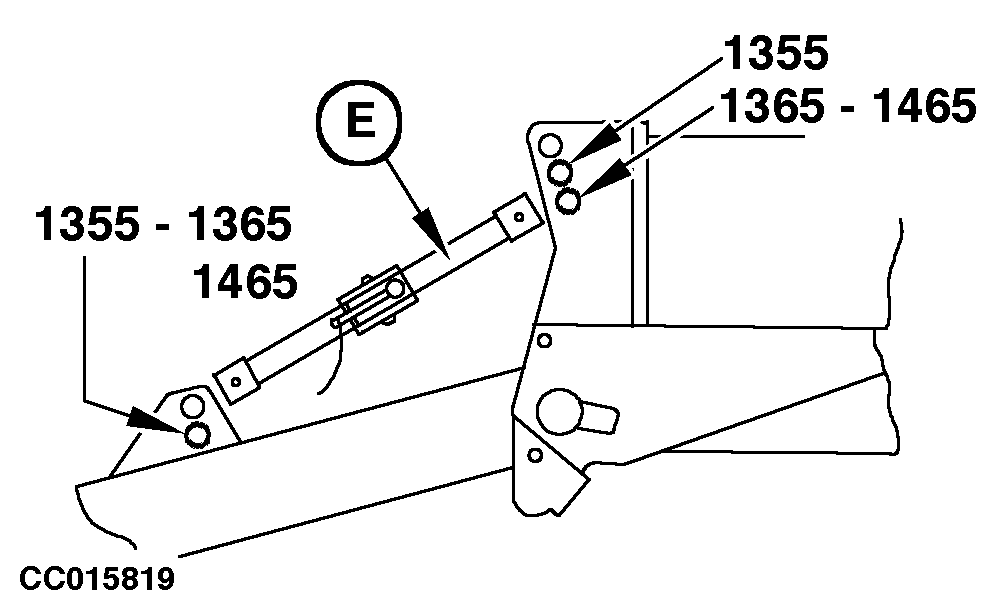

NOTE: Mechanical tongue positioner (E) must always be connected to the correct holes depending on the mower-conditioner model and tongue type.

If the positioner is connected to the wrong holes tractor-to-windrow distance will not be correct.

A-Rope
B-Lock
C-Locking device in transport position

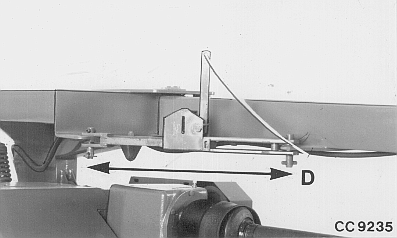

D-Locking device in operation position
E-Mechanical tongue positioner

CC,1355MC004953 -19-21JUN99-1/1
