Operating Tongue Positioning Hydraulic Lock

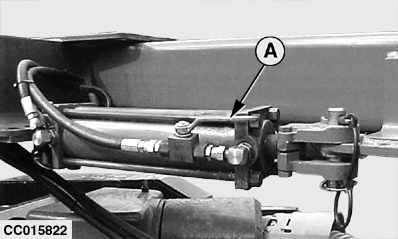

Turn valve (A) to lock cylinder and install transport tongue lock pin before transporting the mower-conditioner.

Before operating the mower-conditioner, remove transport lock pin and open the valve to unlock the cylinder.

A-Valve

CC,1355MC004957 -19-21JUN99-1/1
