Adjusting Platform Float

IMPORTANT: Always adjust the cutting height before adjusting platform float. Turnbuckles must be properly adjusted to prevent sticking (see "Adjusting Cutting Height" in this Section).

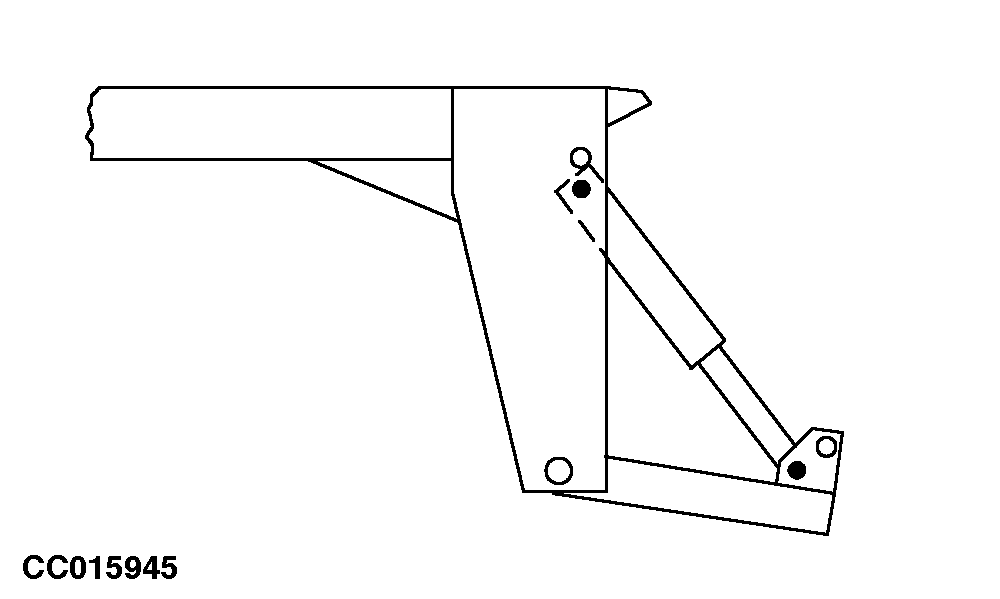

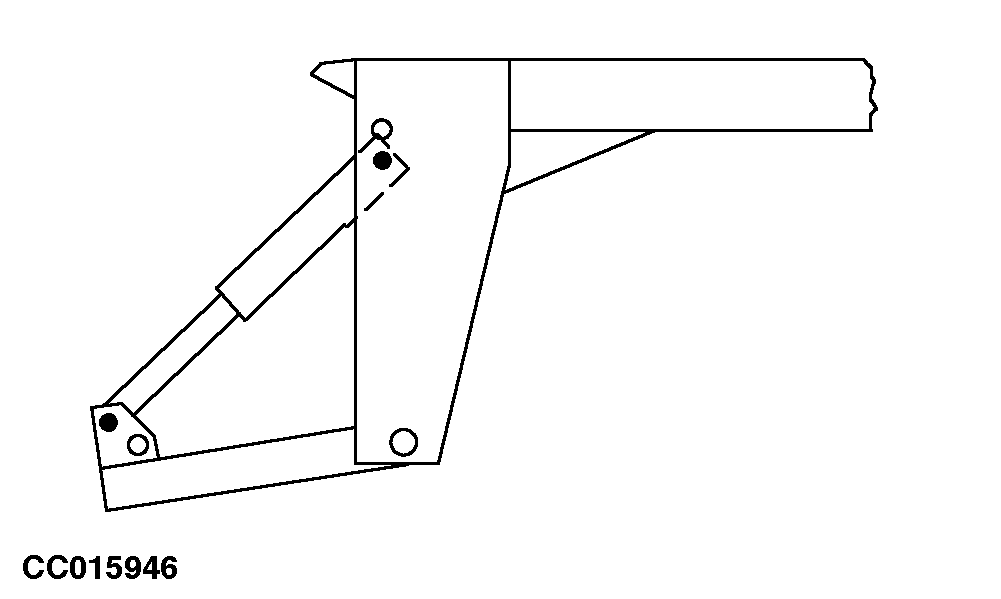

Be sure that platform lift cylinders are attached as shown.

After adjusting cutting height, adjust pre-load of springs (A). Platform weight should be distributed in such a way that a 40 to 70 kg (88 to 154 lb) load is applied to right-hand side and a 70 to 90 kg (154 to 198 lb) load to left-hand side.

NOTE: This is a basic adjustment that depends on the ground speed and ground surface conditions. Re-adjust as necessary.

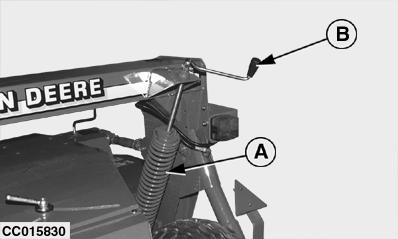

To distribute the specified load, lower machine to ground. Adjust pre-load of spring (A) by turning crank (B).

NOTE: When performing this adjustment, hold left-hand and right-hand side curtains away from the platform.

After adjustment, fold up the crank (B) to maintain the adjustment.

NOTE: Proper balancing of the platform will extend machine service life.

On very damp ground, it is recommended to reduce platform weight.

A-Spring
B-Crank
