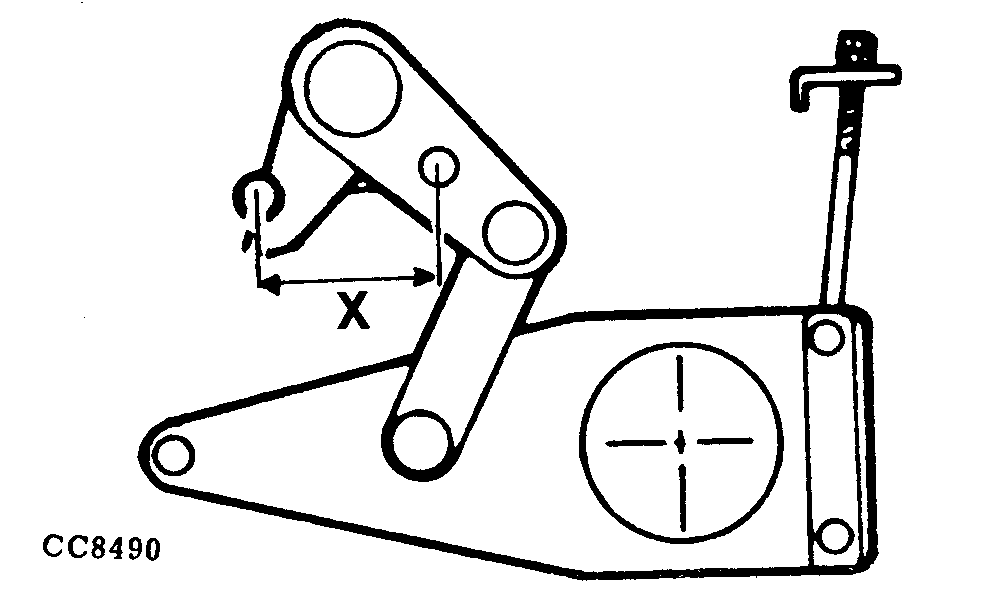

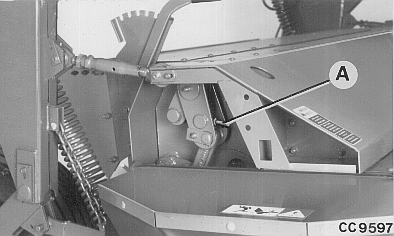

Adjusting Roll Pressure (1465 Only)Depending on crop condition, conditioning intensity can be varied by adjusting roll pressure. If conditioner rolls are too aggressive for tender crops, reduce roll pressure. Make a short test run and check windrow. If the crop is crushed or slashed, reduce roll pressure. NOTE: Length (X) is factory adjusted at 104 mm (4.09 in.). To increase roll pressure, turn adjusting nut (A) to reduce length (X). IMPORTANT: Length (X) must not be less than 100 mm (3.93 in.). To decrease roll pressure, turn adjusting nut (A) to increase length (X). IMPORTANT: Length (X) must not be more than 140 mm (5.51 in.). NOTE: For characteristics of good conditioning effect, see "Checking Conditioning Effect" in this Section. |
|
CC,1355MC004964 -19-22JUN99-1/1 |
