Adjusting Windrow Width

Windrow width can be adjusted:

From 0.70 to 1.30 m (2.29 ft to 4.26 ft) on 1355 mower-conditioner.

From 0.80 to 1.80 m (2.62 ft to 5.90 ft) on 1365 and 1465 mower-conditioner.

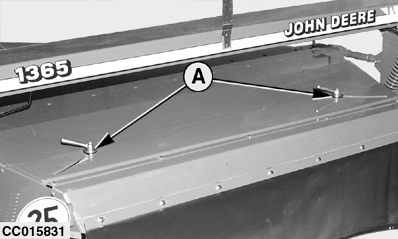

Loosen crank arms (A). Slide them either towards each other or away from each other until the desired position is obtained. Tighten crank arms (A).

A-Crank arms

CC,1355MC004965 -19-22JUN99-1/1
