OMCC58429: 1355, 1365 and 1465 Mower-Conditioners, Block File: CC_1355MC004989_19

Adjusting Belt Tension

On 1355 and 1365 only

Tighten spring adjusting nut (A) until spring is just beginning to be tensioned (spring coils still together). Now continue to tighten nut (A) until spring is extended by 80 mm (3.14 in.).

On 1465 only

Tighten spring adjusting nut (A) until spring is just beginning to be tensioned (spring coils still together). Now continue to tighten adjusting nut (A) until spring is extended by 50 mm (1.96 in.).

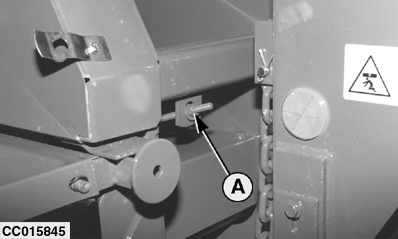

1355-1365 mower-conditioner

A-Adjusting nut

CC,1355MC004989 -19-22JUN99-1/1
