Completely loosen tensioning spring of idler pulley (A).
Tilt belt idler assembly to rear as shown.
Remove belt (B) groove by groove.

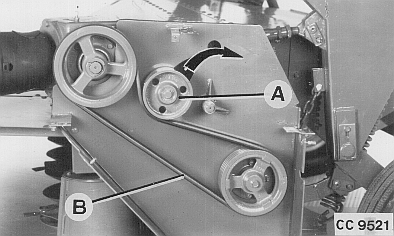

A-Idler pulley B-Belt
1Shields removed for illustration purposes.
CC,1355MC004990 -19-22JUN99-1/1
