Installing Drive Belt (1355 and 1365 Only)

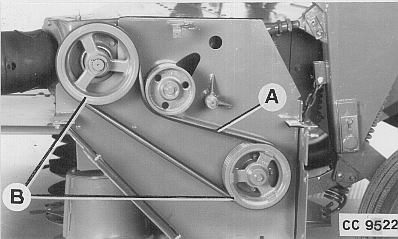

Install drive belt (A) on pulleys (B).

See "Adjusting Belt Tension" in this Section for adjustment of belt tension.

A-Drive belt
B-Pulleys

CC,1355MC004991 -19-22JUN99-1/1
