Removing Drive Belt (1465 Only)

Remove all left-hand shields and side safety curtain.

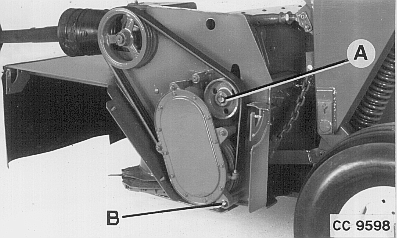

Completely loosen tensioning spring of idler pulley (A).

Remove screw and bushing (B).

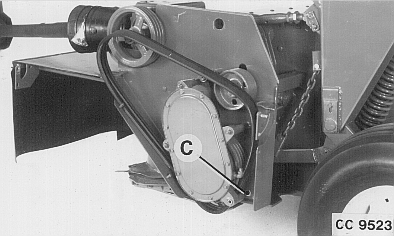

Remove belt through gap (C) created by bushing (B).

A-Idler pulley
B-Bushing
C-Gap

CC,1355MC004992 -19-22JUN99-1/1
