Installing Drive Belt (1465 Only)

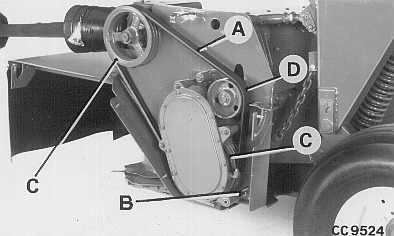

Install belt (A) on pulleys (C) through gap (B) and above idler pulley (D).

Reinsert screw and bushing. Tighten.

See "Adjusting Belt Tension" in this Section for adjustment of belt tension.

A-Drive belt
B-Gap
C-Pulleys
D-Idler pulley

CC,1355MC004993 -19-22JUN99-1/1
