Removing Grouper Canvas Drive Roll

Loosen the canvas.

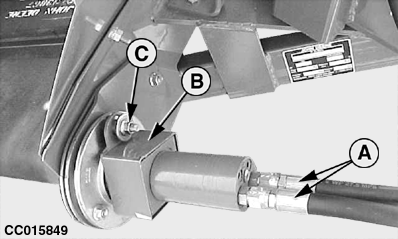

Remove fittings and hoses (A) from motor.

Remove shield (B).

Remove nut (C) and its washer.

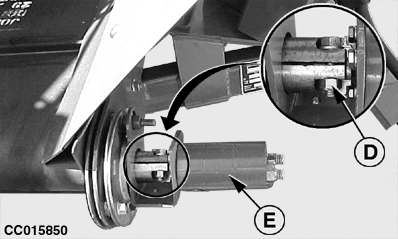

Loosen clamp nut (D) on the roll.

Use a large screwdriver to spread the clamp and remove motor (E) from the roll.

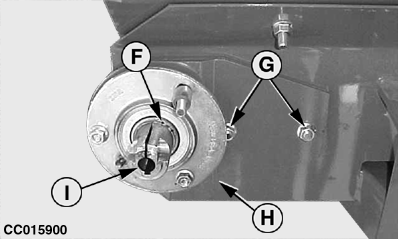

Remove circlip (F).

Remove both mounting nuts (G).

Remove bearing plate (H).

Remove drive roll (I).

A-Hoses
B-Shield
C-Nut
D-Clamp nut
E-Motor
F-Circlip
G-Mounting nuts
H-Bearing plate
I-Roll

CC,1355MC004996 -19-22JUN99-1/1
