Installing Grouper Canvas Drive Roll

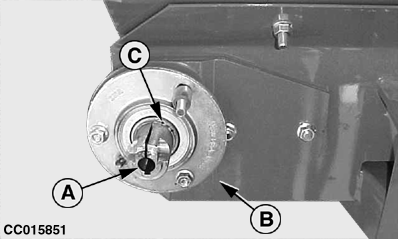

Install drive roll (A) into canvas frame.

Install bearing plate (B) and circlip (C).

Spread drive roll clamp slightly using large screwdriver in hub slot.

Align motor key with the drive roll and insert motor shaft.

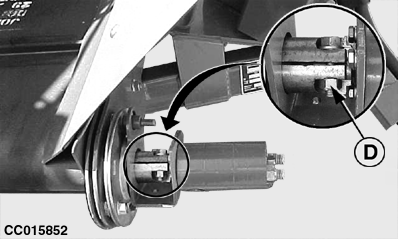

Tighten clamp nut (D) to 33 N·m (24lb-ft).

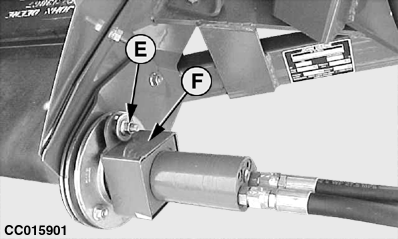

Install washer and nut (E).

Attach shield (F).

Attach fittings and hoses to motor.

Adjust canvas tracking (see "Adjusting Grouper Canvas Tracking" in this section).

A-Roll
B-Bearing plate
C-Circlip
D-Clamp nut
E-Nut
F-Shield

CC,1355MC004997 -19-22JUN99-1/1
