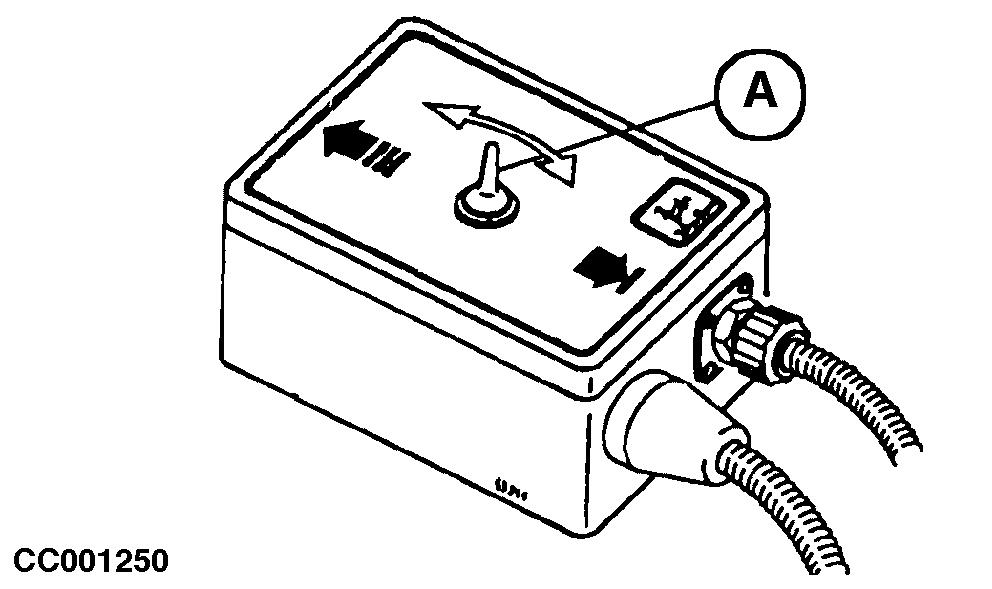

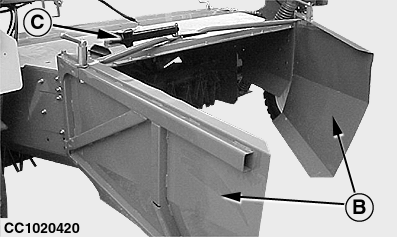

Adjusting Powered Windrow Forming ShieldsActuate switch (A) to adjust the position of the windrow forming shields (B). This adjustment is made directly from the tractor cab via the electrical cylinder (C). Two parallel windrows can be brought closer together for more efficient harvesting with a 4.5 m (14 ft 9 in) pick-up on an SPFH. A double windrow can be picked up in a single pass, thus reducing operating time.
|
|
OUCC006,0000486 -19-04SEP01-1/1 |
